HUUM HIVE Wood 17 LS Wood Burning Sauna Stove
HUUM HIVE Wood 17 LS Wood Burning Sauna Stove
- Regular price
- $2,618.00
- Regular price
- Sale price
- $2,618.00
- Unit price
- per
Found it lower? We'll match it, before or after you buy.
Send us a link to the lower price. If it is the same model, new and in stock at an authorized U.S. online retailer, we match it. Already ordered? If it was lower on your order date, claim the difference within 30 days.
Excludes sale pricing, marketplace sellers and later price drops.
Read the full price match terms →Loading from the room next door, a stove that keeps firewood off the bench.
- Firebox reaches 6.1 inches through the wall
- Stone rides above the firebox, 9 boxes of it
- Needs a T600 chimney, bought separately
Width × height of each glass or tile surface, added together. A 2 × 6.5 ft glass door is 13 sq ft.
Measure the inside of the room, in feet. For a barrel sauna or a sauna kit, go with the heater size the sauna’s manufacturer recommends.
Room volume is length x width x height in feet.
Curbside delivery, insured in transit
Couldn't load pickup availability
How does delivery work?
How does delivery work?
Ships from Wheeling, Illinois. Free to the contiguous 48 above our free shipping threshold. A small accessory can fall below it and then a flat charge applies, shown at checkout before you pay.
How it arrives. The DROP comes by ground parcel, with no appointment and nobody home. CLIFF, STEEL, HIVE and CORE come palletized by freight, including the wall mounted Mini models: the carrier calls to book a window, someone has to sign, and it is a curbside drop rather than inside.
Stone ships in its own boxes. A heater takes 3 to 16 boxes at 33 pounds each. Stone added from a HUUM heater's own page ships free with that heater; ordered on its own it is charged per box at checkout. The quantity is set by the heater, not the room.
When it ships. The estimate on each product page is the distributor's usual dispatch time for stocked items. Stock moves, so we confirm the current position when you order. Working to a deadline? Ask us first.
If it arrives damaged. Note it on the delivery paperwork, photograph the carton and the contents, and tell us the same day. Report damage within 48 hours of delivery, with photographs and before the heater is installed: that is our window, and because it is shorter than HUUM's 7 days it is the one that applies to the HUUM warranty too. Refuse a carton or pallet that is punctured, crushed or structurally damaged.
Where we ship. The contiguous 48 states. We do not ship HUUM to Alaska, Hawaii or Puerto Rico.
Not included: the electrical work. A HUUM heater is hardwired by a licensed electrician, and the clearances and cable entry are set by the model, so book the electrician for after the heater arrives.
What does the warranty cover?
What does the warranty cover?
Private use. 3 years on electric heaters, wood stoves and controls, and 1 year on spare parts, running from your purchase date. Keep the receipt and your electrician's invoice.
Commercial use. 1 year on all of them. HUUM treats it as commercial if a business uses the product commercially, if a private owner uses it commercially, or if a private owner runs it more than 1,500 hours in any 12 months, so a gym, studio or rental is commercial from day one.
What is covered. Defects in materials and workmanship. HUUM decides whether to repair, replace, refund or, with your agreement, reduce the price, and it arranges and pays for any transport it needs. A replaced part does not restart the clock.
Excluded, the ones that matter most. Heating elements, all sensors, sauna stones, accessories, and a wood stove's door glass and ash grate. Also normal wear, damage from poor ventilation or constant damp, power surges and overheating, non-HUUM parts fitted without written approval, and a heater that was the wrong size for the room. Until it is installed it must be kept indoors, dry, ventilated and above freezing.
Two conditions decide most claims. The heater must be installed and connected by a licensed electrician, to HUUM's manual and your local codes, and HUUM can ask for proof. Damage found on delivery must be reported to us within 48 hours and claimed with photographs before the product is installed. Any other fault: report it within 30 days of finding it.
If the fault turns out not to be covered. HUUM's terms let it charge for the work of diagnosing it. We will tell you as soon as HUUM tells us.
Who handles it. HUUM OU in Estonia is the warrantor and we file the claim for you, so you deal with us rather than with Estonia. Call (888) 500-5675 with your order number, the model and its serial number and photographs.
What if I need to return it?
What if I need to return it?
30 days from purchase. New, uninstalled and resalable, in the original packaging with all parts. A heater that has been wired in, fired or loaded with stones counts as installed and cannot go back, and so does a control that has been wired in.
What it costs. Full credit for the product, less a repackaging fee of 20 to 50 dollars depending on the item. There is no percentage restocking fee on a standard return.
Who pays the freight. You do on a change of mind. We cover it when the cause is shipping damage or our error. Shipping you paid at checkout is not refunded on a change of mind return.
Damaged on arrival. A different and faster process. Note it on the delivery receipt before signing, photograph the carton and contents, and call us the same day. Report it within 48 hours of delivery, with photographs and before the product is installed.
Stones and spare parts. Stone is sold by weight and is not returnable once a box is opened. Heating elements, sensors and other spare parts cannot be returned once fitted.
Cancelling before it ships. No fee at all before we send the order to the distributor. After that an administrative fee of up to 5 percent may apply, and we waive it when we are not charged ourselves.
To start a return. Call (888) 500-5675. A Return Authorization number is required before anything ships back. Refunds go to the original payment method within 7 business days of the return being received and inspected.
PRODUCT DESCRIPTION
Jump to13 sections

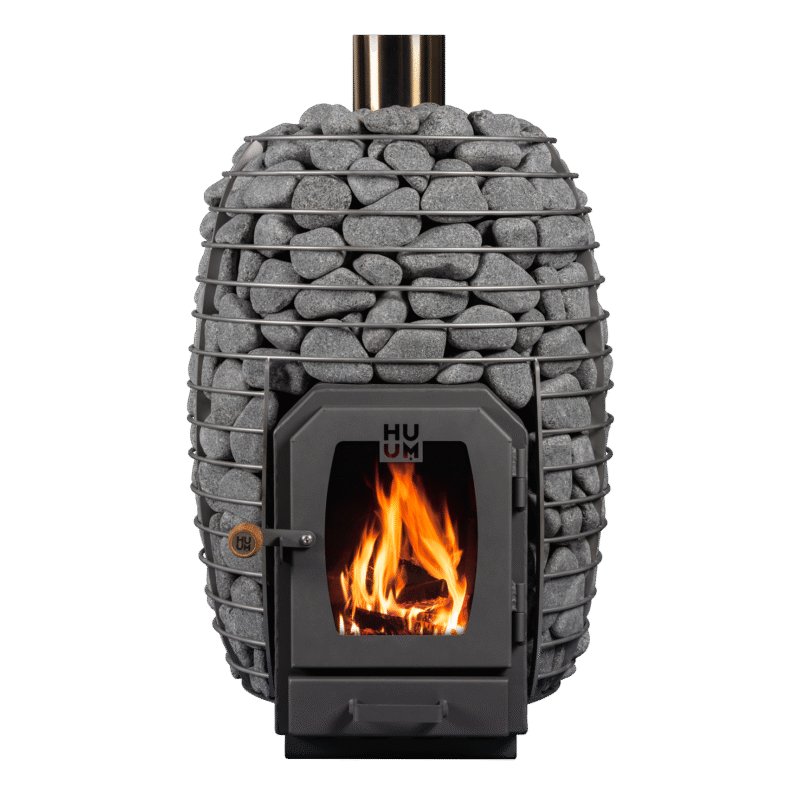

HIVE Wood 17 LS
The HUUM HIVE Wood 17 LS is a wood burning sauna stove for rooms of 283 to 565 cubic feet
A HUUM stove with its stone held in an open cage around the firebox. Its firebox extends through the wall, so the fire is fed from the next room and no firewood is carried into the sauna.
It burns split firewood and needs no electricity and no control. What it does need is a chimney your building department will accept, 9 boxes of sauna stone and a floor it can legally stand on. All three are covered below, in that order, because they decide whether this stove suits your room before anything else does.
The room
283 to 565 cu. ft.
Length by width by height, in feet. A room that leaks heat through uninsulated glass, tile or concrete behaves like a bigger one, so size up rather than down.
Flue and chimney
4.53 in collar, T600
HUUM asks for at least 15.81 square inches of cross section. In the US the chimney also has to be a listed Class A Type HT system, which is a separate order.
The rest of the order
9 boxes of stone
287 pounds, not in the crate. There is no control to buy and nothing to wire.
Before the first fire
What arrives with the HUUM HIVE Wood 17 LS, and what you still have to order
A wood stove is the one sauna heater where the stove is the easy part. Three things are not in the crate and all three are needed before you light it.
| Item | This stove needs | Where it comes from |
|---|---|---|
| Sauna stone | 9 boxes, 287 lb | HUUM sauna stones, ordered with the stove |
| Chimney | Listed Class A marked Type HT, at least 15.81 sq in, onto the 4.53 in collar | A local chimney professional. We send the requirements in writing |
| Floor protection | Non-combustible base, and a plate in front of the door | HUUM makes parts for this, quoted with the stove |
| Wall collar | Seals and finishes the opening the firebox passes through | HUUM part, quoted with the stove |
HUUM also lists optional parts for this model: stone cage, water heat exchanger, reflector. Ask us to quote the lot on one order so the pallet arrives complete.
Honestly
Why the HUUM HIVE Wood 17 LS and not a cheaper box stove
Two things you are paying for. The stone is held in an open cage around the firebox rather than behind a steel skin, so the steam comes off rock rather than off a jacket. And the build is heavy where it matters: the furnace walls and the flame tamer are the parts that fail on a cheap stove.
If none of that matters to you, a welded box stove heats the same room for less money, and we sell those too. Say so on the phone and we will point you at one. The sauna heater buyers guide sets wood against electric properly, and the commercial team handles cabins and lodges where a fire is the point.
Sizing
Which HUUM stove fits your sauna, and where the HIVE Wood 17 LS sits
HUUM rates a wood stove by the volume of the room, not by a power figure you can meter. Measure length by width by height in feet and compare the result with this table.
| Model | Room | Stone | Chimney class | Loading |
|---|---|---|---|---|
| HIVE Wood 13 | 212 to 459 cu. ft. | 6 boxes | T600 | Fed inside the room |
| HIVE Wood 17 | 283 to 565 cu. ft. | 9 boxes | T600 | Fed inside the room |
| HIVE Wood 17 LS | 283 to 565 cu. ft. | 9 boxes | T600 | Fed through the wall |
| HIVE Flow Mini | 212 to 494 cu. ft. | 7 boxes | T450 | Fed inside the room |
| HIVE Flow | 282 to 635 cu. ft. | 10 boxes | T450 | Fed inside the room |
| HIVE Flow LS | 282 to 635 cu. ft. | 10 boxes | T450 | Fed through the wall |
An undersized stove is run hard to keep up and wears out early. An oversized one scorches the room near the stove before the far bench is warm. Stay inside the range.
Not sure a wood stove is the right call? Our sauna heater buyers guide sets wood against electric, and every sauna heater we carry is in one place. These stoves suit a traditional sauna room.
Build
How the HUUM HIVE Wood 17 LS is built

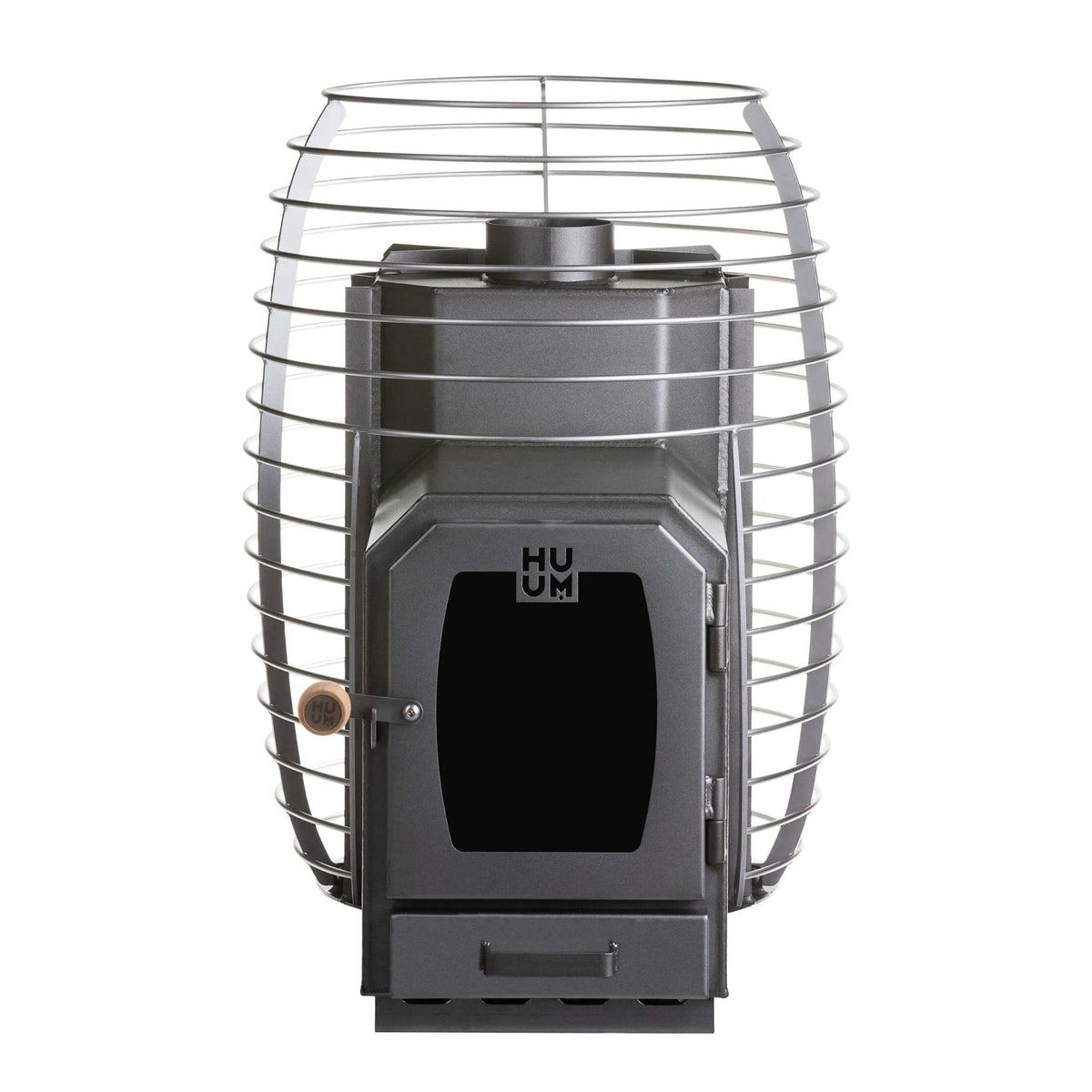

The firebox
Furnace walls are 0.2 inches thick, and HUUM's own description of the range puts a stainless flame tamer, the plate that takes the flame directly, at the same thickness. The steel frame is 21.85 inches across and 29.5 inches tall.

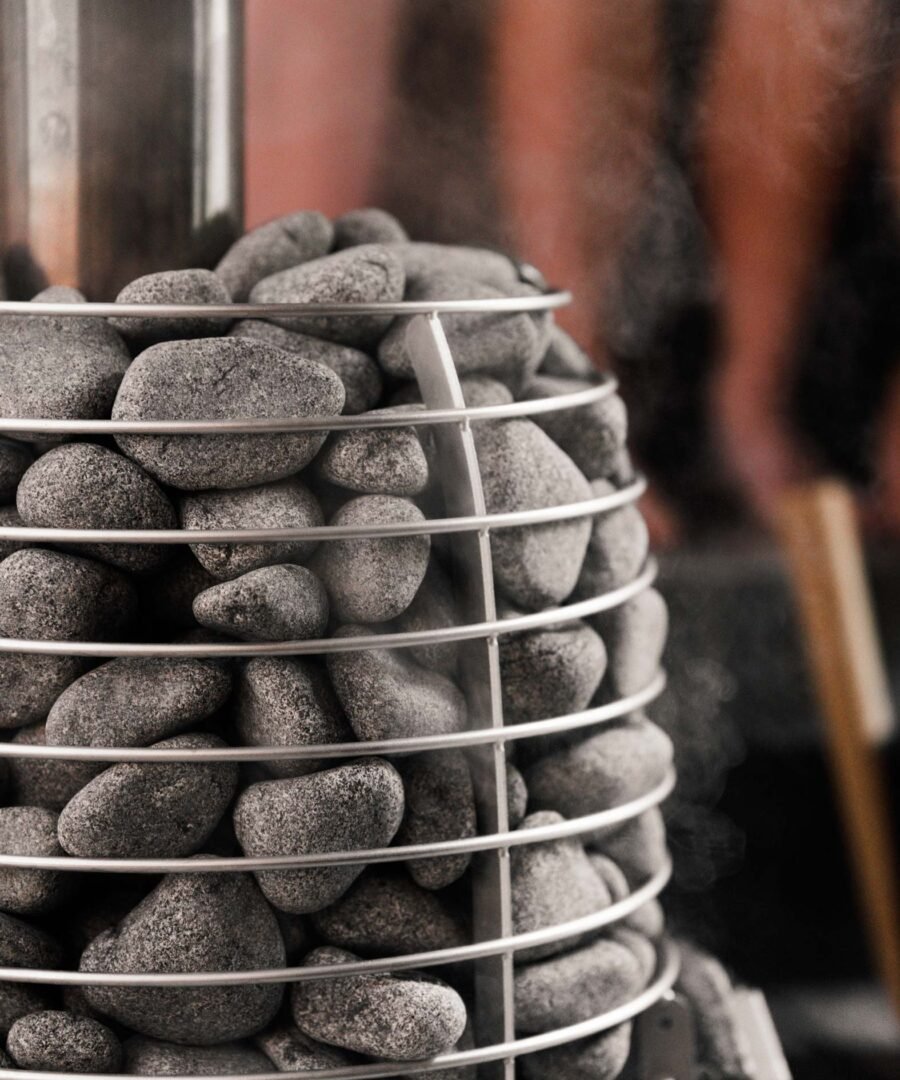

Stone over fire
9 boxes of stone, 287 pounds, ride above the firebox in an open basket. Water goes on the stone, never on the metal.

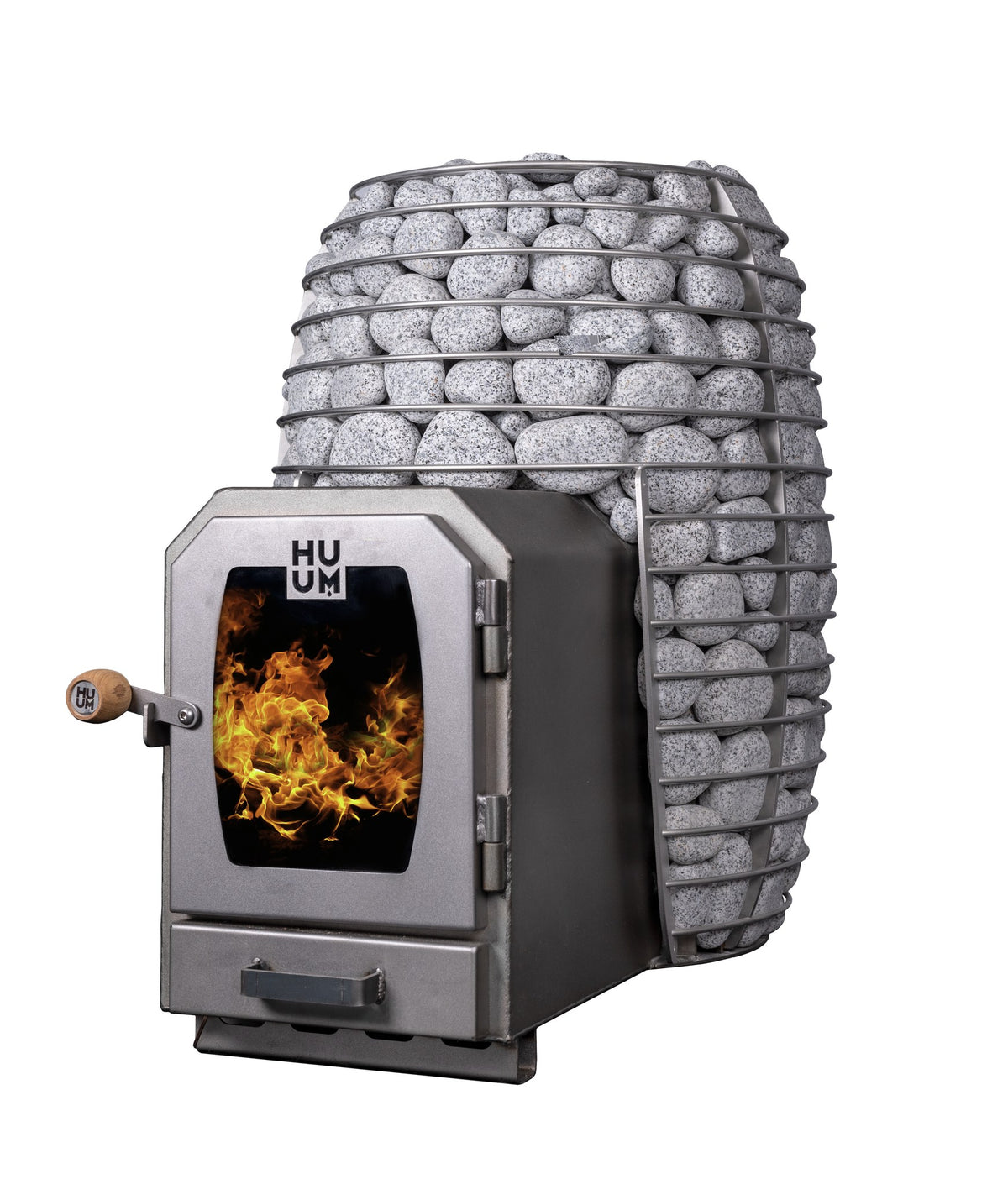

Cutting the wall for the HIVE Wood 17 LS
The firebox reaches 6.1 inches through the wall, so wood is loaded and ash is taken out from the next room. The bushing passes through a non-combustible wall, mineral wool around it is recommended, and at least 0.4 inches of air has to remain all round it, so the opening is cut 0.8 inches taller and wider than the furnace: 18.9 by 12.6 inches.
Over a combustible floor in front of the furnace, HUUM asks for fire-resistant floor protection 23.63 inches wider than the furnace opening and at least 15.75 inches deep.
Running it
How much firewood the HUUM HIVE Wood 17 LS burns, and what fits in it
HUUM prints the numbers rather than leaving the owner to guess, and on a wood stove they are the difference between a long life and a warped firebox.
| Maximum log length | 15.7 in |
|---|---|
| Log diameter | 3.1 to 5.9 in |
| Wood load | 23.4 lb in three parts |
| Fuel | Split firewood only |
| Total efficiency | 66 per cent |
| Flue gas temperature | 829.4 F |
| Minimum chimney draught | 12 Pa |
| Minimum cross section of vents | 12.17 sq in |
US firewood is normally sold cut to 16 inches. That does not fit this stove, which takes 15.7 inches at most. Most suppliers will cut short if you ask when you order. Sort it out before the stove arrives rather than after.
Overheating shows as the furnace case glowing red. HUUM's instruction is to close the ash tray completely, keep the furnace door shut and cut the air to the room if you can. The metal deforms when a stove is overfired and the manufacturer does not cover that.
Heating time depends on the insulation, the room size and the output of the stove, which is HUUM's own answer and the honest one. No maker in this category publishes a tested heat up time.
Watch

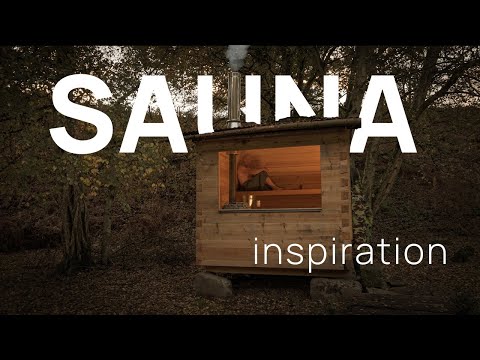

The HIVE Wood in a sauna
HUUM's own film of a HIVE Wood at work in a riverside cabin.
The film is HUUM's. It shows the stove, not the chimney: the flue is the part your installer sizes to your building, and it is worth agreeing before the stove arrives.
The part people underestimate
What chimney the HUUM HIVE Wood 17 LS needs, and why we do not sell you one
HUUM asks for a chimney rated T600 with a cross section of at least 15.81 square inches, connected to a 4.53 inch collar, and says only flue pipe your local fire and safety regulations accept may be used.
The flue leaves from the top of the stove. There is no back outlet on this range.
In the United States that last line has a specific meaning. NFPA 211 and the residential code require a factory built chimney on a wood burning appliance to be listed to UL 103 and physically marked Type HT, and an unlisted metal chimney is not permitted in a one or two family dwelling at all. HUUM builds four stainless chimney sets and they carry European certification, not that listing, so we do not sell them with these stoves.
We also will not sell you an adapter and a length of listed pipe and call it a system. The join between a 4.53 inch European collar and 6 inch American pipe is made by an adapter that no chimney manufacturer lists, and no Class A maker builds one at that size. Specifying that joint for you is the one thing worse than specifying nothing.
What we do instead. Ask us and we will send you the chimney requirements for this stove in writing: the collar size, the temperature class, the minimum cross section, the clearance and termination rules your installer works to, and the questions to put to your building department. You hand that to a chimney professional, who sizes and installs a listed system for your building and stands behind it. That is how the only US listed sauna stove maker handles it too.
Call us on (888) 500-5675 before you buy any chimney part. It is half the job and the half that decides whether the install passes.
Permits and inspection
Is the HUUM HIVE Wood 17 LS UL listed?
No. It is certified to EN 15821:2010, which is a European standard.
There is no UL, ULC or CSA listing for any HUUM wood stove. HUUM's own US manual puts the decision with your local authority: Installation must conform to all local normative documents, the stove may only be connected to the chimney by specialists, and its flue gases must go into their own flue rather than one shared with another appliance.
Two things follow from that, and you want both answered before you order rather than at inspection. NFPA 211 gives an unlisted solid fuel room heater a standard clearance of 36 inches above, in front, behind and at the sides, and allows a manufacturer's smaller distances only for an appliance that is listed. And the chimney itself has to be a listed Class A system marked Type HT.
So call your building department and ask two questions. Does a solid fuel sauna stove need a permit here, and will they inspect it against the chimney and HUUM's published clearances, or do they require a listed appliance. Where a listing is required, this stove will not pass.
We would rather lose the sale than have you find that out with the stove on the pallet. Call us on (888) 500-5675 and we will tell you what buyers in your state have run into.
Clearances
HUUM HIVE Wood 17 LS clearances to walls, ceiling and floor
These are HUUM's distances to combustible material, from the manual's own table. Read them with the permits section above: a US authority may hold an unlisted stove to NFPA 211's 36 inches instead.
| Safety distance A, to combustible material | 19.7 in |
|---|---|
| Safety distance B, to combustible material | 19.7 in |
| Above the stove | 47.3 in |
| Furnace opening, D by G | 18.1 by 11.8 in |
| Stove diameter | 21.85 in |
| Stove height | 29.5 in |
The manual reduces the distance to combustible material to one half with a single heat barrier and to one quarter with a double one, with at least 1.2 inches between the barrier and the surface it protects.
The stove must stand on a non-combustible surface with the carrying capacity to hold it. A wooden floor has to be built out in non-combustible material, not merely covered. HUUM makes protective bedding for this range; it does not make a floor plate for it, and the floor plate in its catalogue is a HIVE Flow part.
In a niche of non-combustible material, leave at least 4 inches around the stove for air to move. Check the local rules before you reduce anything.
A and B are the two wall distances in HUUM's own Table 1 drawing, and D and G are the furnace opening, which is what the LS wall cut is sized from. If your installer needs the other letters in that table, ask us and we will send the page.
Stone
The HUUM HIVE Wood 17 LS takes 9 boxes of sauna stone
287 pounds of it, and it is not in the crate. The manual accepts natural granite or purpose made sauna stove stone, washed before it goes in, and warns that ceramic stone shortens the life of the stove.
The stone our distributor specifies for this stove is the 2 to 4 inch box, and it is the stone we sell: HUUM sauna stones, ordered by the box with the stove.
Check the stones once a year and replace any that have crumbled. Stone breaks down with heat and water, and a bed that has collapsed into gravel chokes the airflow the fire depends on.
Delivery
HUUM HIVE Wood 17 LS freight delivery and what ships separately
About 170 pounds as supplied, on a pallet by freight. Two people move it, and it is far easier to carry in before the stone goes on.
In the crate: the stove and its manual.
Separately, and often on a different day: the stone, the chimney parts and any accessories. See our HUUM shipping policy, the return policy and the warranty terms.
Burn the stove once outdoors before it goes in the room if you can. The paint cures on the first firing and smells while it does.
Reference
HUUM HIVE Wood 17 LS specifications
| Room volume | 283 to 565 cu. ft. |
|---|---|
| Stone | 9 boxes, 287 lb |
| Flue collar | 4.53 in |
| Chimney temperature class | T600 (a European class, not a UL listing) |
| Minimum chimney cross section | 15.81 sq in |
| Weight as supplied | 170 lb |
| Clearance to combustible material | 19.7 in |
| Clearance above | 47.3 in |
| Fuel | Split firewood |
| Loading | Through the wall from the next room |
| Nominal heating power | 17 kW |
| Total efficiency | 66 per cent |
| Maximum log length | 15.7 in |
| Stove diameter and height | 21.85 by 29.5 in |
| Part number | H1010012 |
|---|---|
| GTIN | 4745090275278 |
| Certification | EN 15821:2010 |
| North American listing | None. See the permits section above |
| Optional HUUM accessories | Stone cage, water heat exchanger, reflector |
| Warranty | HUUM limited warranty, 3 years private use and 1 year commercial |
Alternatives
The HUUM HIVE Wood 17 LS against the rest of the HUUM stove range
| Model | Room | Stone | Chimney | Efficiency | Loading |
|---|---|---|---|---|---|
| HIVE Wood 13 | 212 to 459 cu ft | 6 boxes | T600 | 67 per cent | Inside the room |
| HIVE Wood 17 | 283 to 565 cu ft | 9 boxes | T600 | 66 per cent | Inside the room |
| HIVE Wood 17 LS | 283 to 565 cu ft | 9 boxes | T600 | 66 per cent | Through the wall |
| HIVE Flow Mini | 212 to 494 cu ft | 7 boxes | T450 | 75.1 per cent | Inside the room |
| HIVE Flow | 282 to 635 cu ft | 10 boxes | T450 | 74.9 per cent | Inside the room |
| HIVE Flow LS | 282 to 635 cu ft | 10 boxes | T450 | 74.9 per cent | Through the wall |
The HIVE Flow stoves hold more stone, run at a higher measured efficiency and take a glazed door. The HIVE Wood stoves are the simpler build and ask for a hotter chimney class, T600 against T450. Browse the rest at wood burning sauna stoves, the whole HUUM range, or electric sauna heaters if the fire is not the point for you.
Questions
HUUM HIVE Wood 17 LS questions buyers ask before ordering
Is the HUUM HIVE Wood 17 LS UL listed?
No. It carries European certification only, EN 15821:2010, and there is no UL, ULC or CSA listing for any HUUM wood stove. Ask your building department how they inspect a solid fuel sauna stove before you order: NFPA 211 gives an unlisted stove a standard 36 inch clearance on every side, and a listed appliance is what allows a manufacturer's smaller distances to be used instead.
Does it come with a chimney?
No, and we do not sell one with it. The collar is 4.53 inches and HUUM asks for T600, but in a US dwelling the chimney itself has to be listed to UL 103 and marked Type HT, which HUUM's own sets are not. Ask us and we will send the requirements in writing for your chimney professional to work from.
Does it come with stone?
No. It takes 9 boxes, 287 pounds, ordered separately and ideally on the same order so it arrives together.
What firewood fits?
Logs up to 15.7 inches, 3.1 to 5.9 inches thick. US cordwood is normally sold cut to 16 inches, which does not fit, so ask your supplier to cut short.
Does it need electricity?
No. There is nothing to wire and no control to buy.
How big a room will it heat?
HUUM rates it for 283 to 565 cubic feet. Measure length by width by height in feet, and treat uninsulated glass, tile or concrete as though the room were larger.
How far from the wall does it have to stand?
HUUM's own table gives 19.7 inches to combustible material and 47.3 inches above the stove. A non-combustible screen reduces the wall distances, by half with a single screen and by up to three quarters with a double one. Your local authority decides whether those distances may be used at all on a stove that is not listed.
What does LS mean on this stove?
The firebox extends through the wall, so the stove is loaded and the ash taken out from the next room and no firewood crosses the sauna. It needs a non-combustible wall with an opening of the size HUUM specifies, and the wall can only be so thick: up to 6 inches with the HUUM mounting collar and up to 4 inches without it.
Can it go on a wooden floor?
Not directly. The stove needs a non-combustible surface with the carrying capacity to hold it, which means building the floor out rather than laying something over it.
Should I buy this or an electric heater?
An electric heater comes up to temperature on a timer. This stove needs lighting, tending and a fire every time, and a chimney that satisfies your inspector. People who want that hour choose wood. If you do not, our electric sauna heaters start from the same sizing question.
Ordering the HUUM HIVE Wood 17 LS
Tell us how the chimney leaves the building and what your inspector expects, and we will tell you whether this stove suits the room before you spend anything. We will quote the stone and the floor protection with it, and send the chimney requirements in writing for your installer. Call (888) 500-5675.
