PRODUCT DESCRIPTION
Jump to7 sections
Nine kilowatts, round

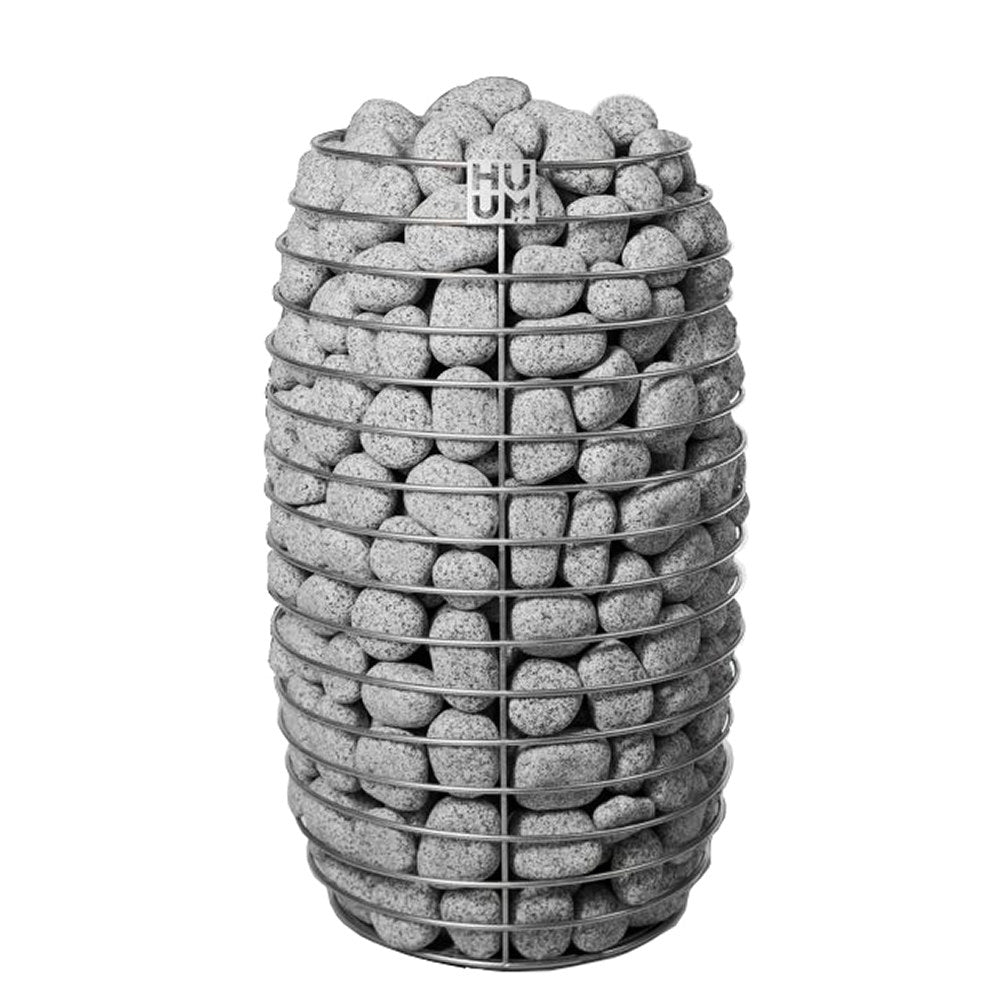

The HUUM HIVE Mini 9 is a 9 kW floor standing electric sauna heater for rooms of 283 to 460 cubic feet
The HIVE Mini 9 heats rooms of 283 to 460 cubic feet from the same 18 1/8 inch diameter body as the Mini 6.
The room
283 to 460 cu. ft.
Length by width by height, in feet. Add 3.3 cubic feet for every square foot of uninsulated glass, tile or brick wall, then size from the adjusted number.
Rated current
37.5 A at 240 V
HUUM's manual calls for a 50 A breaker and 6 AWG cable. It is hardwired by a licensed electrician, who sizes the circuit to the National Electrical Code. On this model HUUM's breaker figure is below what the Code's continuous-load rule gives for its rated current, so your electrician and inspector decide the breaker and cable, and they may be larger than HUUM's figure.
The rest of the order
Control and 10 boxes of stone
Neither is in the carton. A HUUM UKU control runs the heater from outside the room, and this heater holds 331 lb (150 kg) of sauna stone.
Sizing
Will the HUUM HIVE Mini 9 heat your sauna?
Sauna heaters are sized on room volume, not floor area. Measure the room in feet and multiply length by width by height, then pick the heater whose published range contains that figure.
HUUM rates the HIVE Mini 9 for 283 to 460 cubic feet on a 240 volt supply, and its manual warns that the warranty does not apply if the heater and room are dimensioned incorrectly.
Cold surfaces change the answer. HUUM's manual says to add 3.3 cubic feet of volume for every square foot of uninsulated brick, tile or glass wall in the room. It does not say whether a glass door counts, so counting it is the cautious choice.
| Model | Rated room | Output |
|---|---|---|
| HIVE Mini 6 | 177 to 318 cu. ft. at 240 V, 142 to 248 at 208 V | 6 kW |
| HIVE Mini 9 This heater | 283 to 460 cu. ft. at 240 V, 212 to 354 at 208 V | 9 kW |
| HIVE Mini 11 | 354 to 566 cu. ft. at 240 V, 265 to 424 at 208 V | 10.6 kW |
A worked example for the HIVE Mini 9
Take a room 9 feet by 7 feet with a 7 foot ceiling: 63 square feet of floor and 441 cubic feet, inside this heater's 283 to 460. Count a full glass door, take 13 square feet as an example and measure your own, and at 3.3 cubic feet a square foot the room behaves like about 484 cubic feet, which is past the HIVE Mini 9 and into HIVE Mini 11 territory.
The minimum sauna room height for a HIVE is 77 inches (1950 mm). HUUM recommends 79 to 91 inches and asks for 44 to 51 inches between the top bench and the ceiling. For a taller room, HUUM advises lowering the ceiling to reduce the volume.
Not sure which way a borderline room goes? Our sauna heater finder walks the same arithmetic, the sauna heater buyers guide explains what the numbers mean, or call and we will do it with you.
What makes it a HIVE

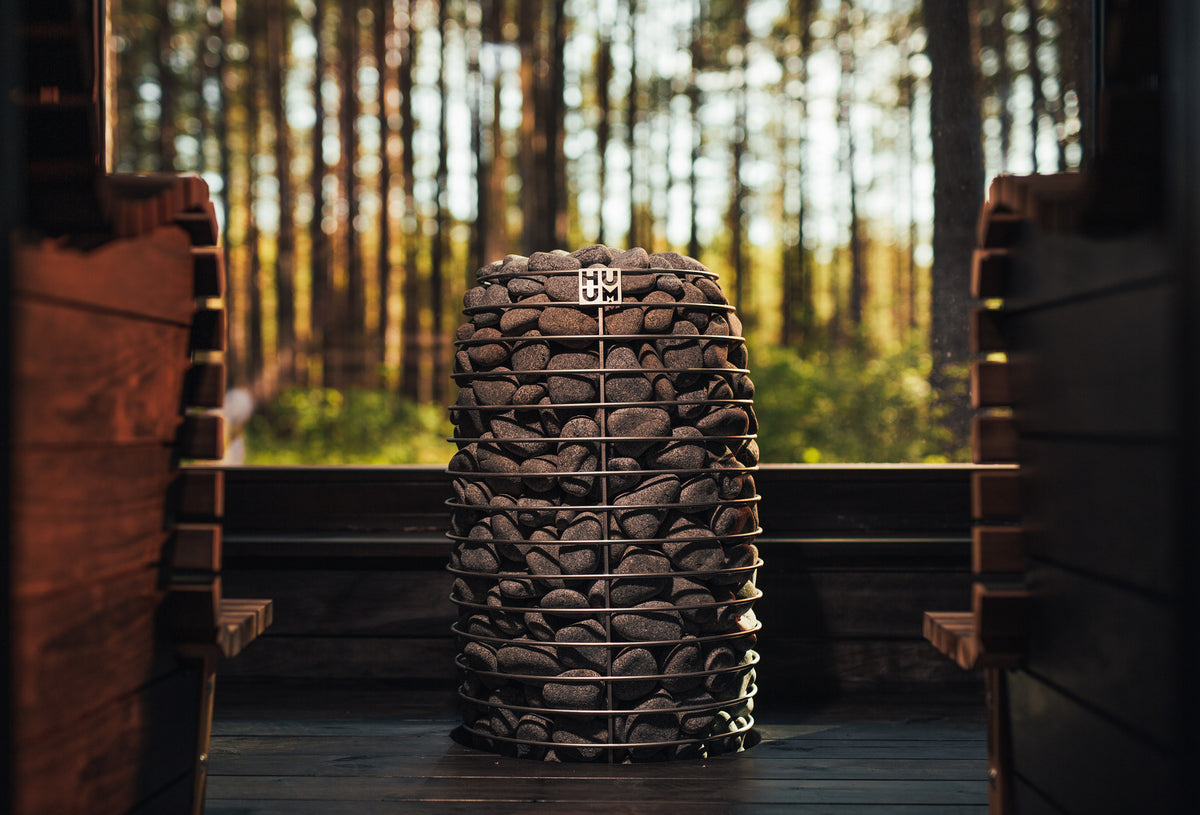

Why the HIVE Mini 9 is round

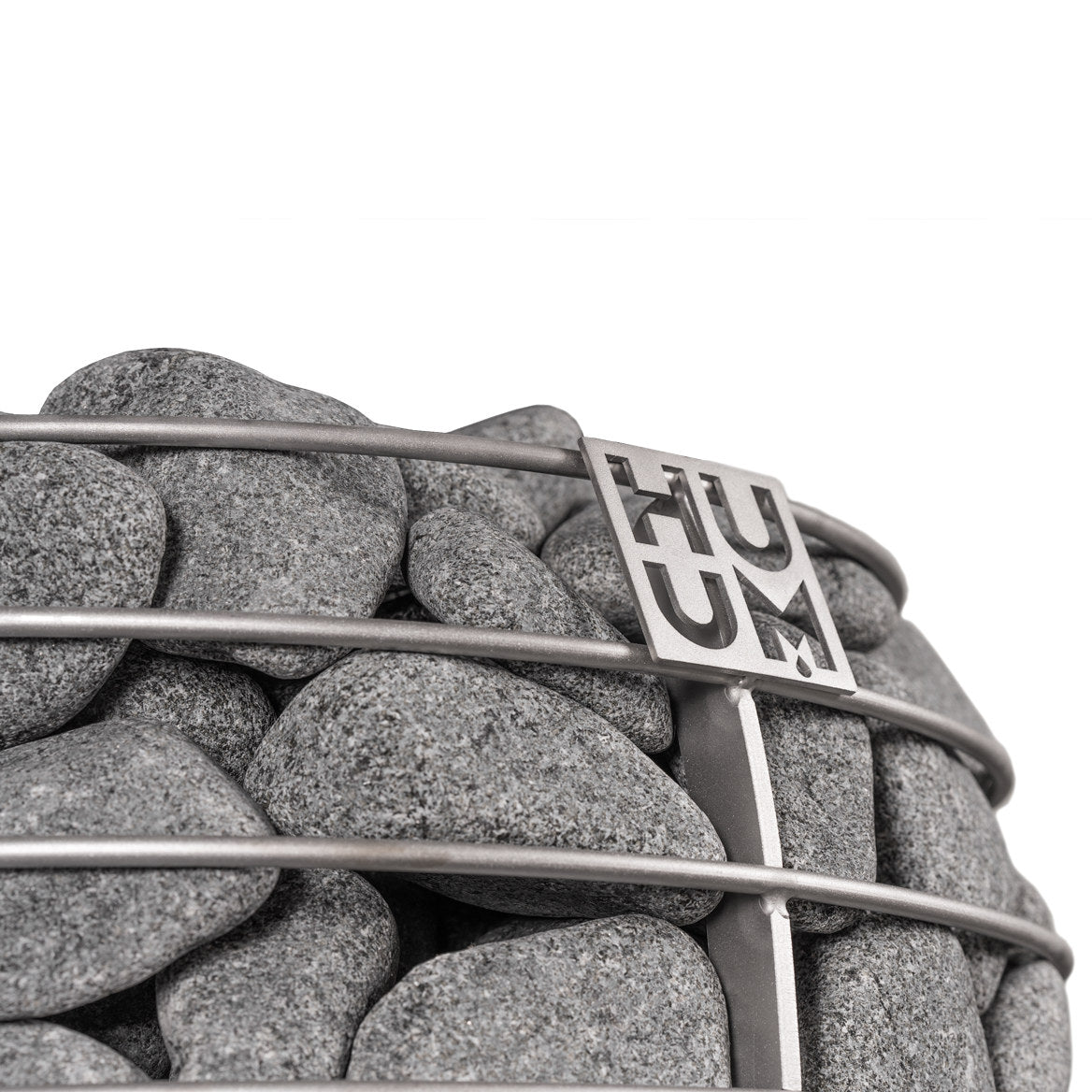

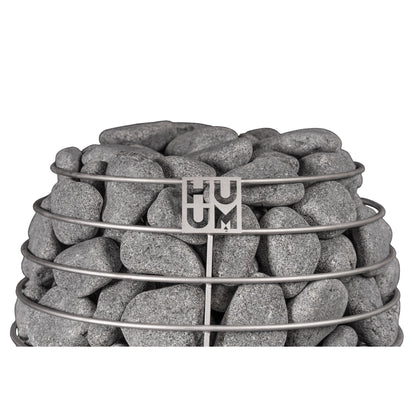

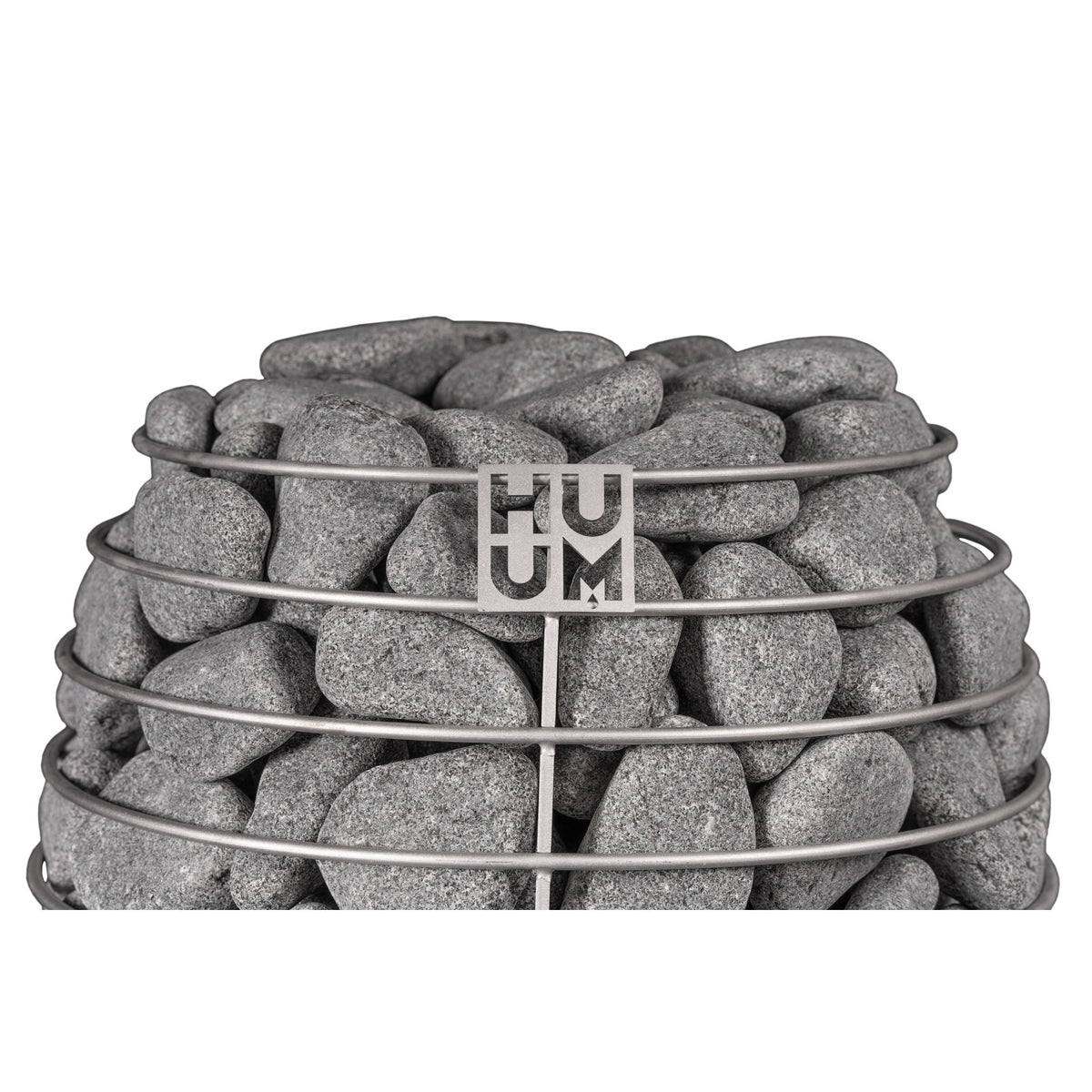

HUUM modeled the HIVE on a wild beehive: stainless steel arcs hold the stone in an open round form, so the stone is what you see.
An open cage of stone
It holds 331 lb (150 kg) inside stainless steel arcs. HUUM describes the large stone load as the source of the HIVE's gentle, long lasting steam.
The air tunnel
Every HIVE ships with an air tunnel inside the stone bed. HUUM's manual says it moves air through the heater to speed up heating, prevents the elements from overheating and gives them structural support.

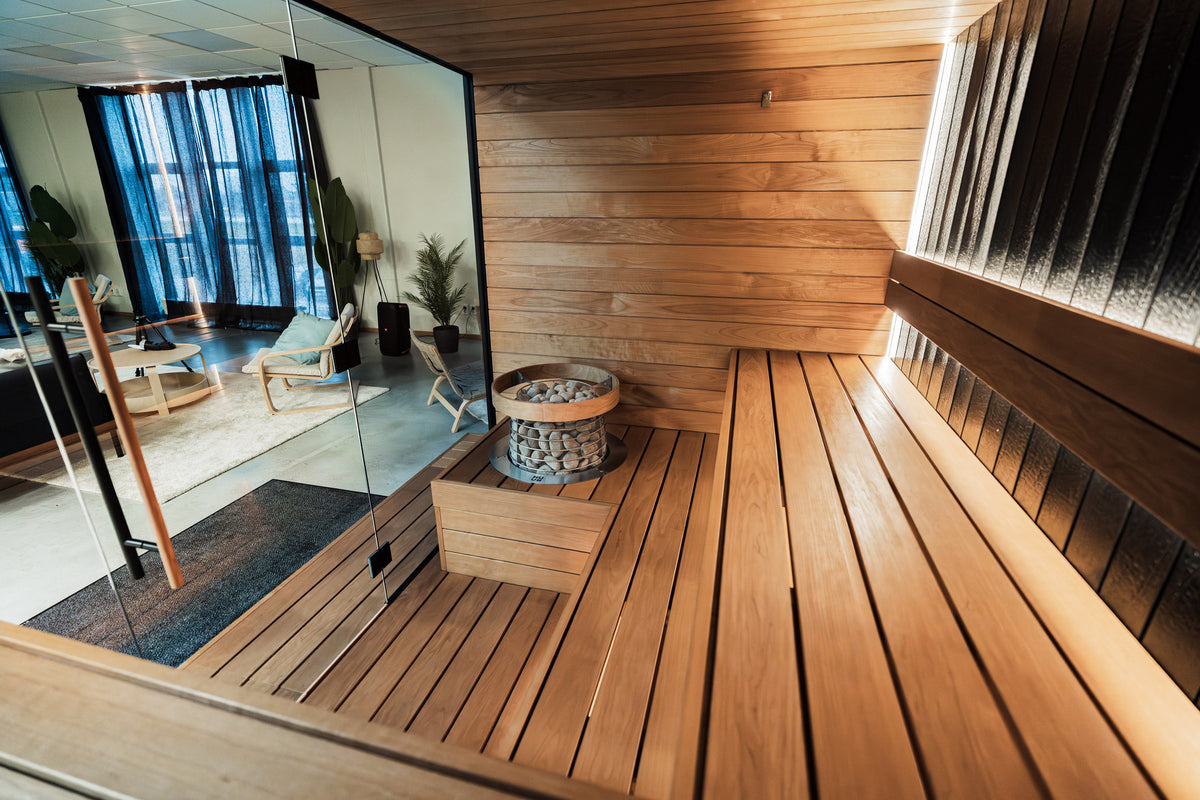

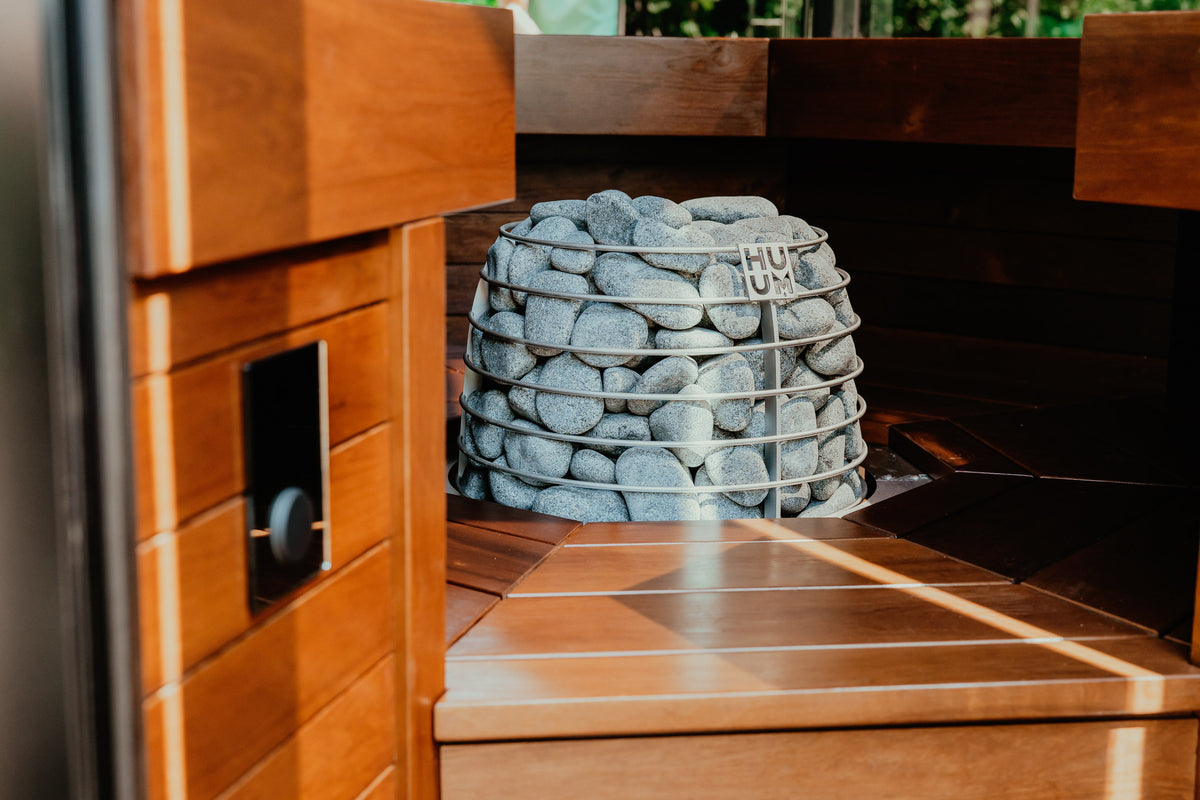

Four legs, or sunk in
The heater is 18.13 in diameter x 29.53 in H and stands on 4 adjustable legs. It can also be partly sunk into the bench or the floor with the HIVE embedding flange, as long as at least 13.8 inches (350 mm) of it stays above the surface.
The cable is heavier on the HIVE Mini 9
HUUM's HIVE manual calls for a 50 amp breaker with 6 AWG cable at 240 volts, a heavier cable than the 8 AWG its CLIFF and STEEL manuals give for a 9 kW heater. Price the cable run with that figure, not the one from another heater's manual.
It asks for 3.53 inches to the wall beside it and 25.19 inches wall to wall across it, and holds 331 pounds of stone, 10 boxes.
The whole order
What a working HIVE Mini 9 takes, beyond the heater
A sauna heater is several purchases, and the others are easy to miss. Nothing here is padding: the heater will not run without them.
| The heater | This page. |
|---|---|
| A certified control | The control unit goes outside the hot room. HUUM's matched control is the UKU, and it is the controller the heater was certified with: the HUUM UKU Local control or the HUUM UKU Wi-Fi control. |
| 10 boxes of stone | 331 lb (150 kg), 2 to 4 inches (5 to 10 cm). HUUM olivine diabase sauna stones come in 33 pound boxes. |
A guard is a code item, not an upsell
The International Residential Code asks for sauna heaters to be protected from accidental contact by a guard made of a material with low thermal conductivity, such as wood, without blocking the heat. You can build one or use the HUUM safety rail made for this heater. HUUM adds that when the guard is a flammable material such as wood, the heater's minimum safety distances still have to be kept to it. Check what your local code has adopted.
Optional
The reflector panel is the part HUUM makes for a tight space: HUUM states it halves the heater's safety distance to the walls, and the heater manual's own distances still decide the layout until your inspector agrees. The embedding flange is only needed if the heater is sunk into a bench or the floor.
Buying the heater, the control and the stone together settles the order in one go: our HUUM HIVE Mini 9 sauna heater package is exactly that, priced at the parts added together. Or call and we will price the heater, control and stone together.
Electrical
The breaker and wire size the HUUM HIVE Mini 9 needs
Settle this before you buy, because it is the line item that surprises people. The heater is hardwired by a licensed electrician.
The figures below are HUUM's, from its US manual. They are the manufacturer's minimum, not a design for your house: sauna heating is a continuous load, so the National Electrical Code can require a larger breaker and heavier conductors than the manual's figure, and local amendments differ. Your electrician sizes the circuit. On this model HUUM's breaker figure is below what the Code's continuous-load rule gives for its rated current, so your electrician and inspector decide the breaker and cable, and they may be larger than HUUM's figure.
| Supply | What HUUM specifies | Rated room |
|---|---|---|
| 240 VMost homes | 9 kW, 37.5 A, 50 A breaker, 6 AWG minimum cable | 283 to 460 cu. ft. |
| 208 V | 6.75 kW, 32.45 A, 40 A breaker, 8 AWG minimum cable | 212 to 354 cu. ft. |
What the manual requires
The supply cable has to meet UL 62 in the United States or CSA 49 in Canada. Crimping the cable ends is mandatory. Cable with non heat resistant PVC insulation is not allowed, and the junction box must be waterproof and within 20 inches (50 cm) of the floor. HUUM's HIVE manual says only certified control panels designed for the control of an electric heater may be used.
HUUM recommends connecting the heater without a GFCI breaker. Its manual says it is recommended to connect the unit to the mains without one. Whether you can follow that depends on where the sauna goes and which edition of the electrical code your area has adopted: an outdoor sauna at a home may fall inside the Code's ground fault requirement for outdoor outlets at these ratings, depending on the edition adopted and how your inspector reads it, while an indoor hardwired heater usually is not caught. Where the manual and the adopted code disagree, the code and your inspector decide.
Why it is listed, and why that matters
It is listed by SGS, not by UL. SGS North America is on OSHA's list of nationally recognized testing laboratories, and it lists the HIVE Mini 9 for the United States and Canada under certificate SGSNA/20/SUW/00067X, to UL 60335-1, CAN/CSA C22.2 No. 60335-1, CAN/CSA E60335-2-53 and IEC 60335-2-53. The listing applies on the conditions SGS records against it: the heater is used with sauna stones, run from an approved sauna heater controller (the listing was evaluated with the UKU), supplied by conductors rated to at least 90 degrees C, and carries the warning tag on the bottom rung of the frame. Inspectors differ on what they ask to see for a sauna heater, so check with yours before you buy. We can send you the certificate.
Clearances
Where the HUUM HIVE Mini 9 can go
Clearances are set per model and generally grow with output. These are this model's figures from HUUM's manual.
| To the wall beside the heater | 3.53 in |
|---|---|
| Wall to wall across the heater | 25.19 in |
| Above the heater, to the ceiling | 47.25 in (1200 mm) |
| Body size | 18.13 in diameter x 29.53 in H |
| Weight | 39.7 lb without stone |
| Mounting | Floor standing on four adjustable legs |
Screw the 4 legs in and adjust them so all four carry the heater equally and it stands level, as HUUM's manual asks.
The room itself has to be built for a sauna, with an insulated shell, a reflective vapor barrier and supply and exhaust vents. Our traditional sauna rooms arrive built that way.
Stone
How much stone the HIVE Mini 9 takes, and how to lay it
The stone is not a finishing touch. It is the thermal mass that turns 9 kW into steam, and the heater may not be switched on without it.
This heater holds 331 lb (150 kg), which is 10 boxes of HUUM stone. HUUM asks for stone 2 to 4 inches (5 to 10 cm) across and supplies olivine diabase in 33 pound boxes. HUUM advises against decorative stone, which does not store enough heat and breaks easily.

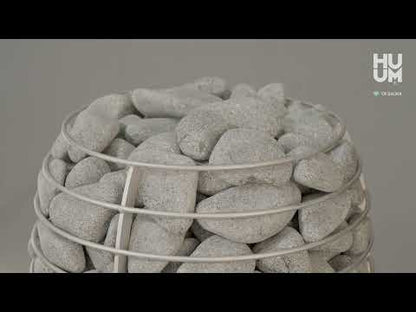

Laying it
Wash the stone under running water first. Lay it one piece at a time rather than pouring it in, bigger stones at the bottom and the sides, smaller ones fixing them in place. Lay stone between the elements too, which supports them and keeps them apart, without pushing hard enough to bend them. Lay the stones as tightly as possible while leaving some room for air to circulate, and lay the outer face tightly so no element shows through. HUUM recommends round stone, which lets the steam water run down to the lower layers.
A sparsely filled stone bed is a fire hazard. HUUM's manual warns that if the elements are not properly surrounded by stone, its safety distances do not apply. Damage caused by unsuitable stone is not covered by HUUM's warranty.
Looking after it
HUUM asks for the stone to be checked once a year, with broken pieces taken out and replaced. Stone crumbles as it cycles, and the pieces are what block the air holes.
Watch
Building it into the bench
The optional embedding flange, from bench cut-out to finished edge.
HUUM filmed this itself. Its heater installation films are made for Europe and show European wiring, so we do not run them here: the sauna side of the job is the same, the electrical side is not.
Running cost
What the HIVE Mini 9 costs to run
A sauna heater draws its full rated power while it heats, then cycles on the thermostat to hold temperature. That makes the ceiling easy to calculate and the real figure lower.
| Full output, one hour | 9 kW x 0.183 = about 1.65 dollars |
|---|---|
| Three hours at full draw, heat up and a session | about 4.94 dollars |
| Three of those a week | about 15 dollars a week |
Those are ceilings, not averages: once the room is at temperature the thermostat cycles the elements, so the real bill lands under these ceilings. Your own rate is on your utility bill and varies widely by state.
Insulation controls this number, not the heater. HUUM's manuals call for an insulated room so the heater can run at its regular output.
What you get
In the HIVE Mini 9 carton
- Electric heater
- 4 adjustable legs
- Air tunnel
- Installation and operation manual
Not included
The control, the stone, and the electrical work. The control and 10 boxes of stone are required to operate the heater. The rail, reflector and embedding flange are optional.
Lead time
Delivery estimates are shown on this page and at checkout. If you need a date before you commit, call us and we will confirm the current position with the distributor.
Reference
HUUM HIVE Mini 9 specifications
Full specification tables
| Heater output | 9 kW at 240 V, 6.75 kW at 208 V |
|---|---|
| Room volume | 283 to 460 adjusted cu. ft. at 240 V, 212 to 354 cu. ft. at 208 V |
| Minimum room height | 77 in (1950 mm) |
| Rated current | 37.5 A at 240 V, 32.45 A at 208 V |
| Circuit breaker | 50 A at 240 V, 40 A at 208 V |
| Minimum supply cable | 6 AWG at 240 V, 8 AWG at 208 V |
| Stone capacity | 331 lb (150 kg), 10 boxes |
| Stone size | 2 to 4 in (5 to 10 cm) |
| Body size | 18.13 in diameter x 29.53 in H |
| Clearance to the wall beside it | 3.53 in |
| Wall to wall across the heater | 25.19 in |
| Clearance above the heater | 47.25 in |
| Mounting | Floor standing on four adjustable legs |
| Control | Separate certified control required, sold separately |
| Part number | H1002022 |
|---|---|
| Heater weight, empty | 39.7 lb |
| Supply | Single phase, 60 Hz |
| Certification | SGS Listed for North America (SGSNA/20/SUW/00067X) |
| Warranty | HUUM limited warranty, 3 years for private use and 1 year for commercial use |
The range
HUUM HIVE Mini 9 against the rest of the HIVE Mini range
Every figure below is HUUM's own, from its US manual, and the breaker column is the manufacturer's minimum rather than a design for your house.
Scroll the table sideways to see every model.
| HUUMHIVE Mini 66 kW, 177 to 318 cu. ft. | HUUMHIVE Mini 9You are here | HUUMHIVE Mini 1110.6 kW, 354 to 566 cu. ft. | |
|---|---|---|---|
| Output at 240 V | 6 kW | 9 kW | 10.6 kW |
| Rated room | 177 to 318 cu. ft. | 283 to 460 cu. ft. | 354 to 566 cu. ft. |
| Current | 25 A | 37.5 A | 43.75 A |
| Breaker | 30 A | 50 A | 50 A |
| Minimum cable | 10 AWG | 6 AWG | 6 AWG |
| To the wall beside it | 2.36 in | 3.53 in | 4.34 in |
| Stone | 10 boxes | 10 boxes | 10 boxes |
When a HIVE Mini is the wrong heater
The HIVE Mini tops out at 10.6 kW and 566 cubic feet. Above that the full size HIVE takes over, from 12 to 18 kW, on two circuits and with the UKU extension box.
Compare the whole range on our electric sauna heaters page, browse every sauna heater we carry, or see every model in our HUUM sauna heaters collection.
Buyer questions
HUUM HIVE Mini 9 questions buyers ask before ordering
What size sauna will the HUUM HIVE Mini 9 heat?
HUUM rates it for 283 to 460 cubic feet on 240 volts, or 212 to 354 cubic feet on 208 volts. Measure length by width by height in feet, then add 3.3 cubic feet for every square foot of uninsulated glass, brick or tile wall, and size from that number.
Does the HUUM HIVE Mini 9 come with a control?
No. Every HUUM electric heater needs a separate certified control, bought separately, and the control unit goes outside the hot room. HUUM's matched control is the UKU, the controller this heater was certified with, in Local or Wi-Fi form.
How many boxes of stone does the HUUM HIVE Mini 9 need?
10 boxes. The heater holds 331 lb (150 kg) and HUUM asks for stone 2 to 4 inches (5 to 10 cm) across. HUUM's own stone is olivine diabase in 33 pound boxes. The heater may not be run before it is properly filled.
What breaker and wire does the HUUM HIVE Mini 9 need?
On 240 volts it draws 37.5 A and HUUM specifies a 50 A breaker with 6 AWG cable. On 208 volts it is 32.45 A, a 40 A breaker and 8 AWG. The cable must meet UL 62 in the United States or CSA 49 in Canada, and your electrician sizes the install to the National Electrical Code and to local amendments. On this model HUUM's breaker figure is below what the Code's continuous-load rule gives for its rated current, so your electrician and inspector decide the breaker and cable, and they may be larger than HUUM's figure.
Is the HUUM HIVE Mini 9 UL listed?
It is listed by SGS, not by UL. SGS North America is on OSHA's list of nationally recognized testing laboratories, and it lists the HIVE Mini 9 for the United States and Canada under certificate SGSNA/20/SUW/00067X, to UL 60335-1, CAN/CSA C22.2 No. 60335-1, CAN/CSA E60335-2-53 and IEC 60335-2-53. The listing applies on the conditions SGS records against it: the heater is used with sauna stones, run from an approved sauna heater controller (the listing was evaluated with the UKU), supplied by conductors rated to at least 90 degrees C, and carries the warning tag on the bottom rung of the frame. Inspectors differ on what they ask to see for a sauna heater, so check with yours before you buy. We can send you the certificate.
Can I install the HUUM HIVE Mini 9 myself?
Not if you want the warranty. HUUM's warranty requires the heater to be installed and connected by a licensed electrician, with proof presented to HUUM, and HUUM recommends a specialist lays the stone. The heater is hardwired, crimped cable ends are mandatory and the manual forbids cable with non heat resistant PVC insulation. Keep the electrician's invoice.
Does the HUUM HIVE Mini 9 need a GFCI breaker?
HUUM's manual says it is recommended to connect the heater without one. Whether you can follow that depends on where the sauna goes and which edition of the electrical code your area has adopted. An outdoor sauna at a home may fall inside the Code's ground fault requirement for outdoor outlets at these ratings, depending on the edition adopted and how your inspector reads it, while an indoor hardwired heater usually is not caught. Where the manual and the adopted code disagree, the code and your inspector decide.

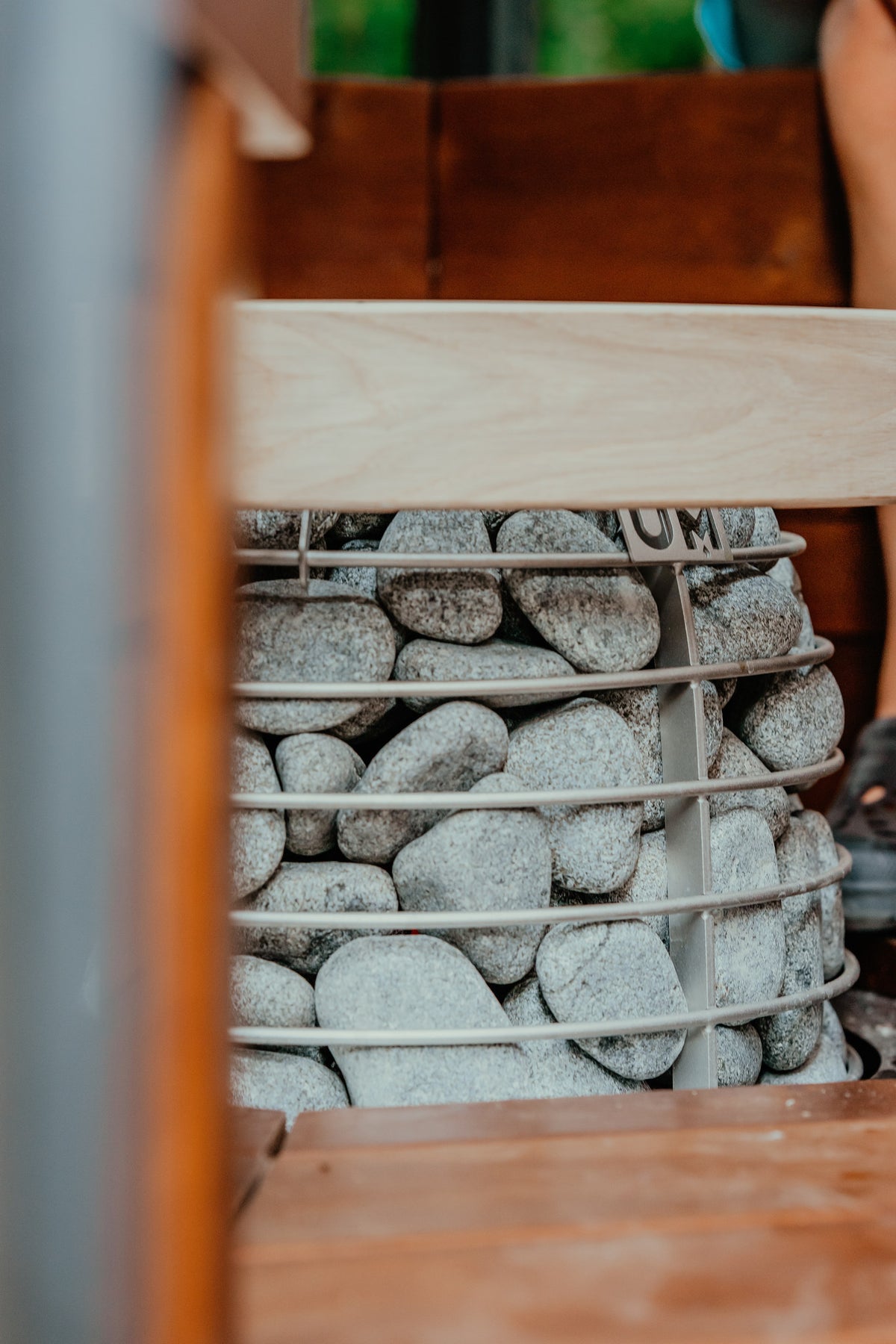

Can the HUUM HIVE Mini 9 be set into the bench?
Yes. HUUM's manual allows the HIVE to be partly sunk into the sauna bench or floor, as long as at least 13.8 inches (350 mm) of it stays above the surface, with the HIVE embedding flange covering the cut edge.
Does the HUUM HIVE Mini 9 need a UKU extension box?
No. The extension box is for HUUM heaters above 11 kW, which means the HIVE 12, 15 and 18. This heater runs from the UKU's main module on its own.
What warranty comes with the HUUM HIVE Mini 9?
HUUM warrants its electric heaters, wood stoves and controls for 3 years in a private sauna and 1 year in a commercial one, from the date of purchase, with spare parts covered for 1 year. Heating elements, controller sensors, stones, HUUM accessories, and wood stove door glass and ash grates are excluded, and so is damage from unsuitable stones or from a heater sized wrong for the room. HUUM counts it as commercial use if a registered business uses the product commercially, if a private user uses it commercially, or if a private user runs it for more than 1,500 hours in a 12 month period. For the warranty to apply, the heater has to be installed and connected by a licensed electrician with proof presented to HUUM, installed and operated to HUUM's manual and to local building, electrical and fire codes, and installed complete. Damage found on delivery has to be reported to us within 48 hours of delivery, with photographs and before the heater is installed; that is our window, and because it is shorter than HUUM's 7 days, it is the one that applies to the HUUM warranty. Any defect has to be reported within 30 days of discovering it. Because elements are excluded, we stock them as replacement parts.
