Harvia Cilindro PC90E Sauna Heater Package | Xenio or Fenix Control and Stones

Harvia Cilindro PC90E Sauna Heater Package | Xenio or Fenix Control and Stones

Harvia logo
Authorized Harvia Dealer Full Manufacturer's Warranty Included
Regular price
$2,905.00
Regular price
Sale price
$2,905.00
Found it lower? We'll match it, before or after you buy.

Send us a link to the lower price. If it is the same model, new and in stock at an authorized U.S. online retailer, we match it. Already ordered? If it was lower on your order date, claim the difference within 30 days.

Excludes sale pricing, marketplace sellers and later price drops.

Read the full price match terms →

The 9kW Cilindro with its wall panel, and 220 lbs of rock for the column.

  • Stone rating: 200 lb maximum
  • 37.5 A at 240V, 8 AWG minimum wire
  • Built for rooms to 494 cubic feet
See full details, specs and comparison
FREE SHIPPING
Choose your package
Control

Both include the power unit. The heater and five boxes of AC3000 stay the same.

Control
May qualify for HSA/FSA — save 30% on average

Using HSA or FSA funds

We run a reimbursement model. You pay us normally, then claim the money back from your own plan.

1

Check that you qualify. A short chat-based telehealth consultation through Flex. A licensed clinician reviews your answers.

2

Buy with an ordinary card. Check out normally. We do not accept HSA or FSA cards at checkout.

3

Claim it back. Send your documentation and itemised receipt to your plan administrator.

This category is listed as eligible with a Letter of Medical Necessity for a diagnosed condition. Eligibility is decided individually, and your plan administrator has the final say. Flex cannot serve Louisiana, New Mexico or Mississippi.

About the 30%. Flex publishes 30% as the average pre-tax saving on an HSA/FSA purchase. What you actually save is your own combined tax rate, so it moves with your bracket and your state — it is an average, not a quote.

Free ShippingTo the contiguous 48 states
30-Day ReturnsCounted from purchase, not delivery
No Sales TaxExcept CA & WY
Price MatchFound it lower? We'll match
Recovery Room Direct specialist

Talk to a Recovery Specialist

1-888-500-5675

Mon–Sat 9am–6pm EST

Schedule a Call

Shipping & Delivery

Every Harvia heater and stove ships free to the contiguous 48. What changes across the range is not the cost to you but how it arrives: electric heaters come by parcel and need nobody home, while wood-burning stoves come palletized by freight, by appointment, to the curb. Call (888) 500-5675 if you want the delivery method for your exact model confirmed before you order.

Electric heaters ship by parcel. Wall-mounted and pillar heaters run roughly 29 to 55 pounds, so they travel as insured ground parcel. No delivery appointment, no liftgate, no waiting in. These are the models that ship free to the lower 48.

Wood-burning stoves ship by freight. A wood stove can weigh several hundred pounds before you add stone, so it moves palletized on an LTL carrier. Freight is included to the contiguous 48. What a pallet changes is the handling: a delivery appointment, a signature, and curbside drop rather than a carrier leaving it at the door.

Sauna stones ship separately and they are heavy. A heater takes anywhere from one box to thirteen at roughly 44 pounds a box. Because of that weight, shipping is charged per box at checkout, including when the stones are ordered with a heater.

Scheduling your delivery. Parcel shipments need nobody home. For freight, the carrier calls to arrange an appointment window and someone must be there to sign. Curbside is the standard: the driver will not bring a pallet inside or up steps, so arrange help for a heavy stove.

Where we ship. The contiguous 48 states. Alaska, Hawaii, Puerto Rico and Canada are quoted case by case, so contact us before ordering.

Inspect before you sign. Check the carton or pallet for damage while the driver is still there, and note any damage on the delivery receipt at the time of signing. Then contact us the same day. A clean signature with no damage noted makes a freight claim much harder to win, and this one habit is what decides most claims.

Lead times. Harvia stock for this market moves through a US distributor, so most orders ship promptly. Some part numbers are supplied from Finland and take longer. We confirm the position for your specific model when you order rather than publishing an average that would be wrong for half the range.

Questions before you order? Ten minutes on the phone confirming freight, lead time and what else has to be on the same pallet is cheaper than a surprise after you have paid.

Warranty

Harvia covers its sauna heaters and wood-burning stoves against defects in materials and workmanship under normal use. Coverage runs from your date of purchase, so keep your receipt. Harvia US Inc. is the warrantor for North America.

Coverage periods. Residential family use: 2 years on electric heaters, controls and steam generators including the heating elements, and 2 years on wood-burning stoves. Commercial use: 2 years on electric heaters, controls and electronics but 6 months on heating elements, and 6 months on wood-burning stoves.

Register within 30 days and Harvia adds a third year. Registration is free and needs the model, serial number and purchase date. We send you the link and your serial number with your order, so you do not have to go looking for it. Electric heaters in residential use only. Almost no retailer mentions it, and it is worth a full extra year.

What is covered. Defects in manufacture and materials. Harvia will repair the product or supply replacement parts through the importer. Replacing a part does not extend the original period.

What is not. Normal wear, improper installation, poor maintenance, failure to follow the instructions, alterations and improper use. Sauna stones are a consumable and are not covered, and stones Harvia does not specify for your model can void cover.

Professional installation is a condition. Harvia requires that the unit is installed and wired by a licensed electrician and that proof of professional installation can be presented with a claim. Keep your installer's invoice with your receipt. A heater wired by the owner is outside the warranty.

Transport damage has a seven day limit. Harvia requires that you check the product for transport or storage damage on receipt, and that any damage found is reported to the seller or the carrier immediately and no later than seven days after delivery. We ask you to call us the same day because a claim is far easier to win with the damage noted on the delivery receipt, but seven days is the outside limit in Harvia’s own terms.

Changing how you use it ends the cover. Harvia states that the warranty period expires immediately if the primary intended use changes during the period, in either direction. Moving a heater from a family sauna into a gym, a rental or any other commercial setting ends the residential cover rather than converting it. Tell us before you order if the room will be used commercially, so we can quote it on the right terms from the start.

A callout for a fault that is not covered can be charged. If the defect turns out to fall outside the warranty, Harvia is entitled to charge for the work of finding it, including labour, travel and shipping at actual cost. Call us first and we will work through the symptoms with you before anything is booked, which is usually enough to tell whether it is a warranty fault, an installation issue or a stone problem.

How to make a claim. Call (888) 500-5675 or email sales@recoveryroomdirect.com with your order number, model and serial number, and a description of the fault. Photographs help. We open the claim with Harvia US on your behalf.

Return Policy

If a Harvia heater or stove is not right, you have 30 days from the date of purchase to return it. All return communication is handled by our team at Recovery Room Direct. You do not need to contact the manufacturer or the distributor yourself.

Condition required. The unit must be new, uninstalled and in resalable condition with its original packaging and all included parts. A heater that has been wired in, fired, or loaded with stones counts as installed and cannot be returned.

How to start a return. Call (888) 500-5675 or email sales@recoveryroomdirect.com with your order number. A Return Authorization number is required before anything goes back, and product returned without one can be refused. We will give you the RA number and the return address.

What a return costs. You get full credit for the product, less a repackaging fee that typically runs about 20 to 50 dollars depending on the item. There is no percentage restocking fee on a standard customer return, which is better than most of what we carry, where 15 to 20 percent is normal.

Who pays the return freight. You do on a change of mind. We do, and the distributor does, when the cause is shipping damage or an error on our side. Nothing is deducted for freight in those cases.

Damaged on arrival is a different process, and it is time sensitive. Note the damage on the delivery receipt before you sign, photograph the carton and the contents, and call us the same day. Concealed damage found after signing is much harder to claim, so open the box on delivery day even if you are not installing for weeks.

Sauna stones. Stone is sold by weight and is not returnable once a box is opened. Order the quantity your model takes and ask us if you are unsure, because the amount is set by the heater rather than by the room.

Control units and accessories. Same 30 day window and the same condition requirement. A control unit that has been wired in cannot be returned.

SECURE CHECKOUT
| American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Venmo Visa

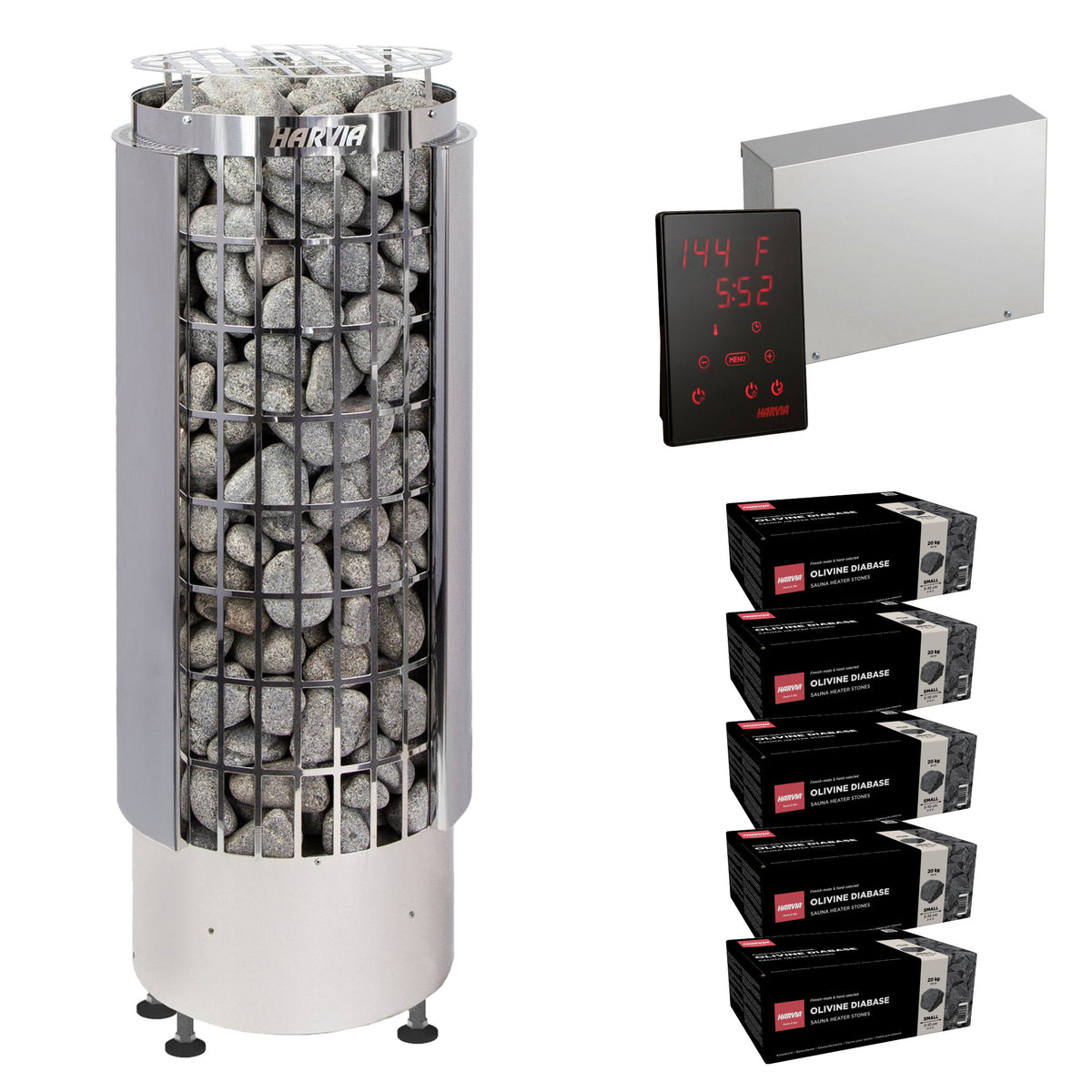

Harvia Cilindro PC90E sauna heater package: the PC90E heater, Xenio CX45 control panel and power unit, and five boxes of AC3000 stones

Harvia Cilindro Package

Harvia Cilindro PC90E Sauna Heater Package

The Cilindro PC90E runs from a separate control unit and needs 200 lbs of stone before the first heat. This package pairs the 9kW heater with five boxes of Harvia AC3000 split-face stone and your choice of control: the Harvia Xenio CX45 or the newer Fenix FX45.

At 9kW Harvia rates it for rooms up to 494 cubic feet. The package is priced at the three parts added together, at the prices we charge for each part on its own.

Shop Pay Installments financing available at checkout. Speak with a recovery specialist on (888) 500-5675.

9kWHeater Output
494Max Cu. Ft.
Xenio or FenixControl Included
5 boxesAC3000 Stone Included

In the package

Heater, control and stone in one order

Choose the control above. The heater and the stone are the same in both versions.

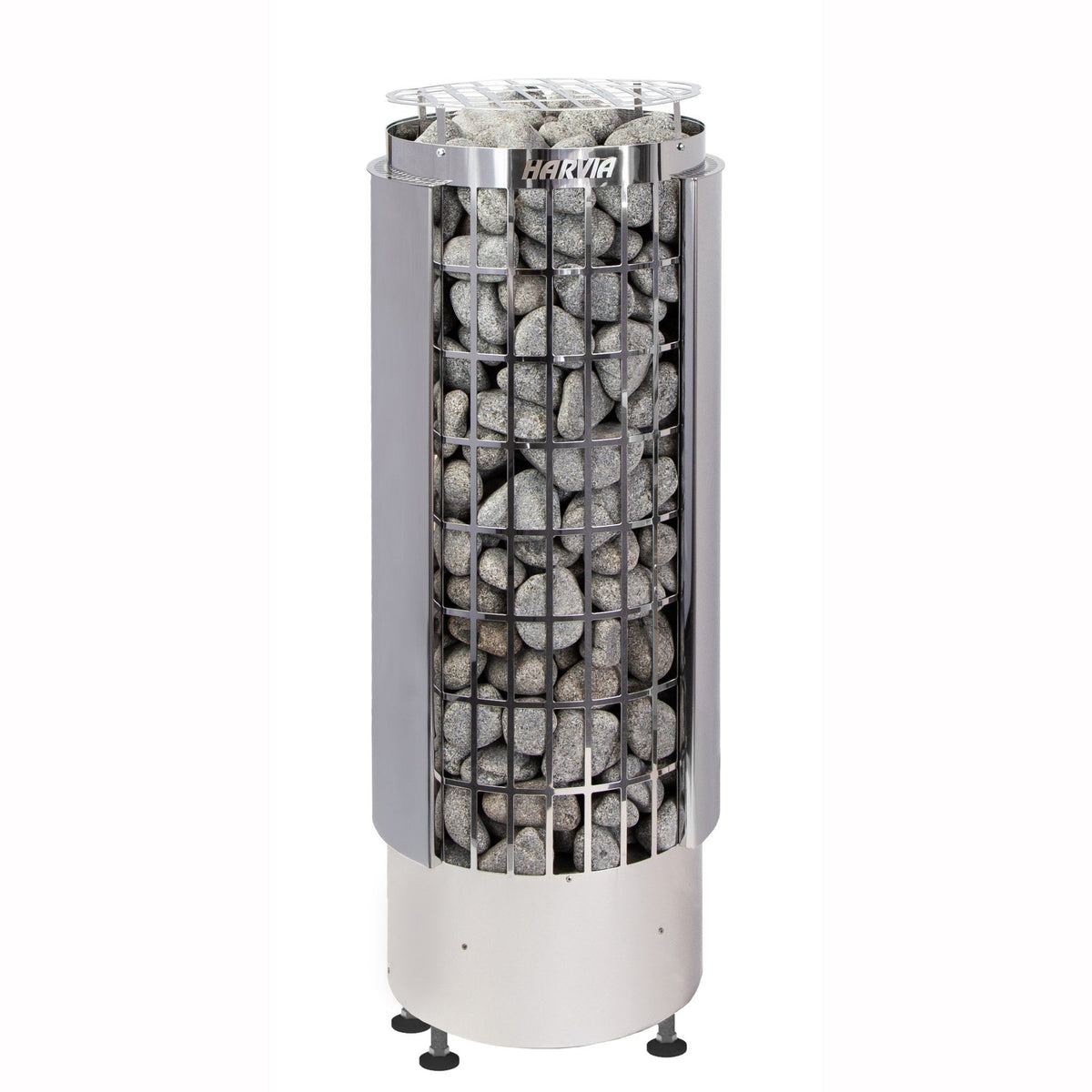

1 × Harvia Cilindro PC90E heater

The 9kW floor-standing pillar heater in stainless steel. The carton holds the heater, its temperature sensor (WX248) and the installation and operation manual.

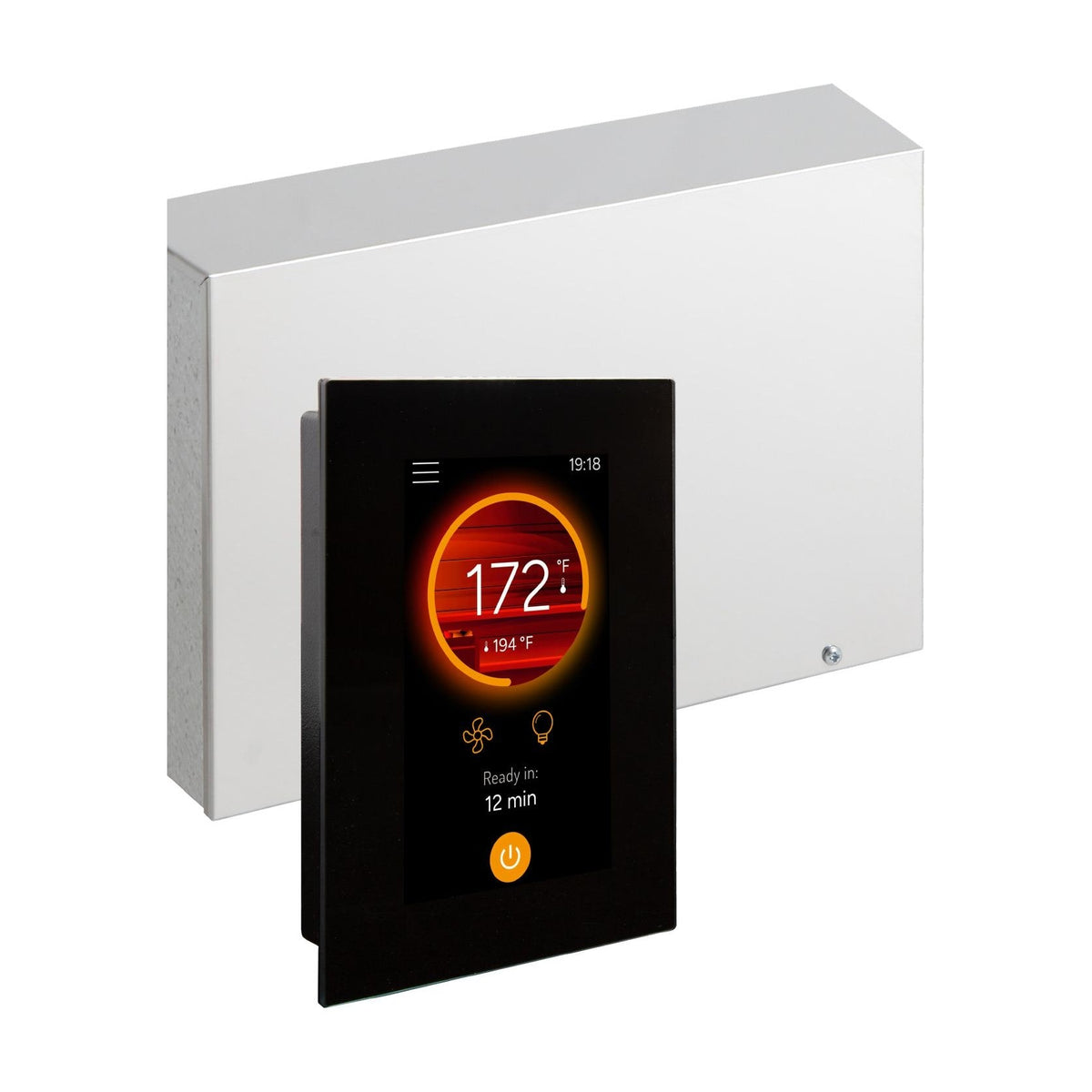

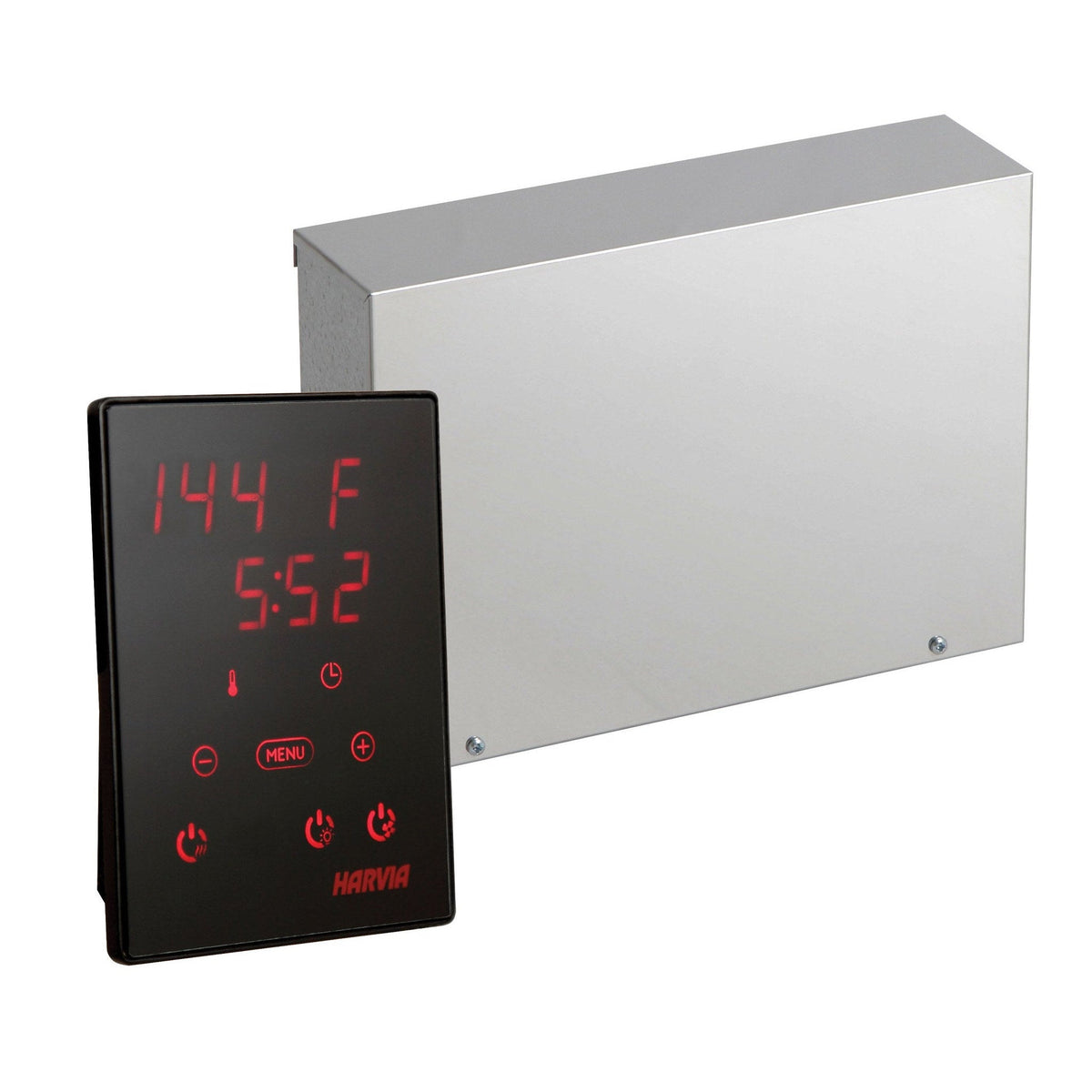

1 × Harvia Xenio CX45 or Fenix FX45 control

Both come with the touch control panel, the power unit, a 5 m data cable and a heater sensor with its overheat protector, plus the installation material and instructions. The Xenio touch panel has WiFi, so you can start the sauna from your phone. The Fenix FX45 has a 4.3 inch glass touch screen, and Harvia lists remote control through the MyHarvia app with its MyHarvia Control Upgrade.

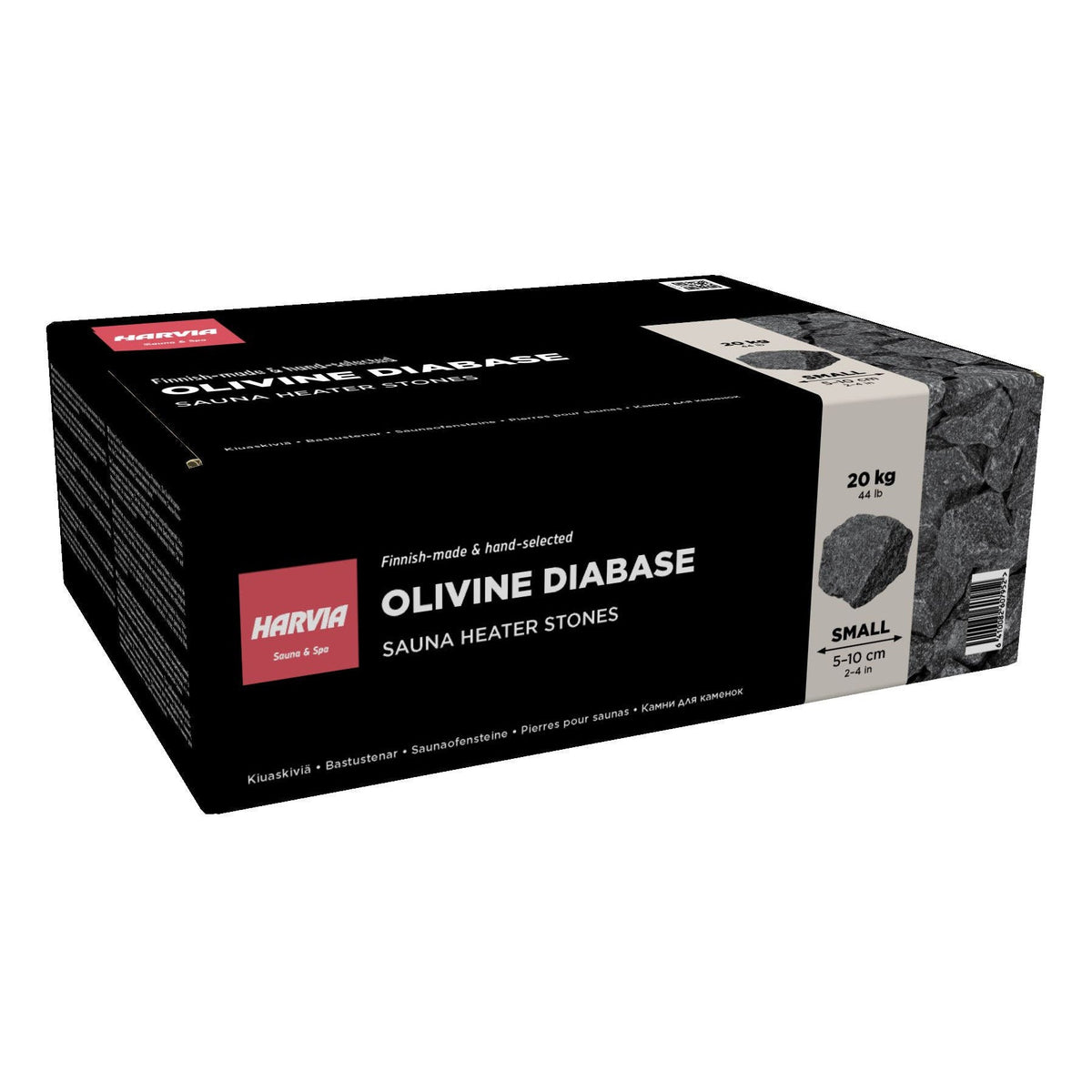

5 × Harvia AC3000 stones, 44 lb boxes

Split-face olivine diabase, 2 to 4 inches (5 to 10 cm) across. Harvia rates the PC90E for up to 200 lbs of stone, so five boxes leave a few spare.

Swipe to see all columns

Version Heater Control Stone
Xenio CX45 HPCS9U1HUL CX45-U1-U3-XW AC3000, 5 boxes
Fenix FX45 HPCS9U1HUL FX45-U1-U3-XC AC3000, 5 boxes

Harvia's control manual says that when a heater is delivered with a temperature sensor, that is the one to install. The PC90E comes with its own (WX248), so use it.

Already have a control? The PC90E is also sold on its own on the Harvia Cilindro PC90E heater page.

Would rather set the sauna from the heater itself? The Harvia Cilindro PC90 package is the same output with its controls built in.

Harvia Cilindro PC90E Features

What the heater gives you at 9kW

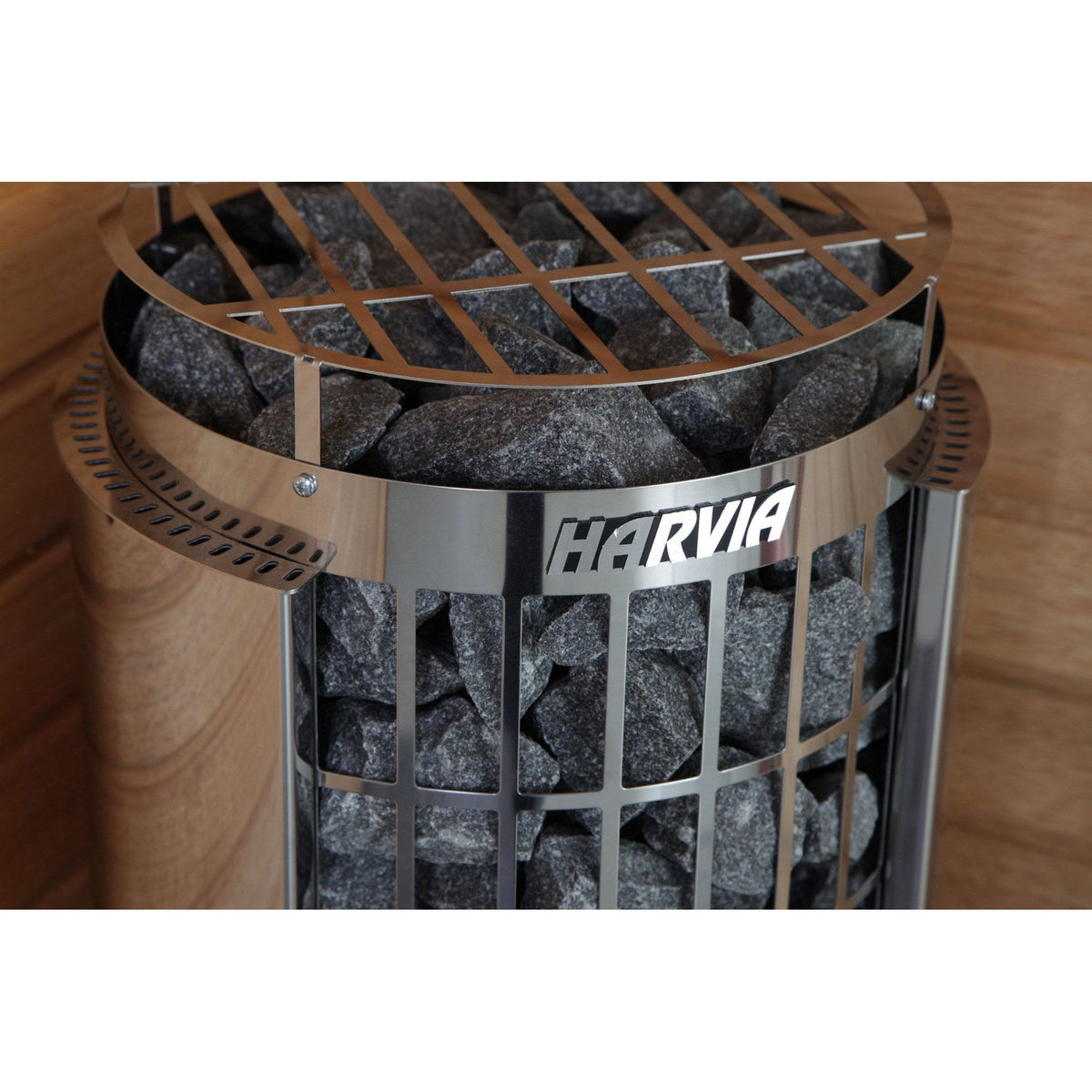

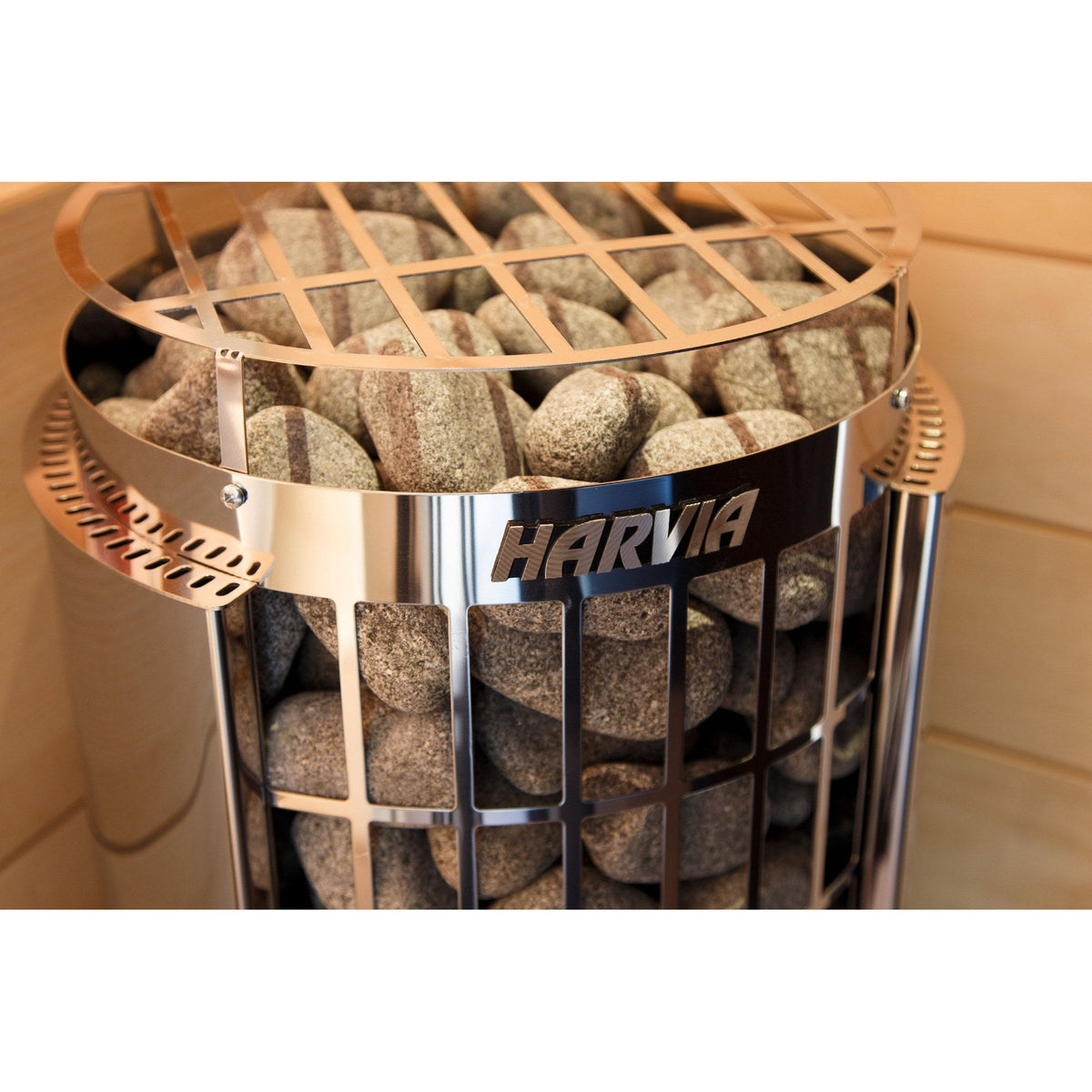

200 lbs of stone in an open column

The grate-like outer shell puts stone in direct contact with the elements down the full height of the column, which is what separates a pillar heater from a wall unit at the same output. More stone means a softer, longer steam and a room that recovers faster after each ladle.

Runs from the control in the package

The PC90E is controlled from a separate control unit, and this package pairs it with a Xenio CX45 or a Fenix FX45. Each control unit has a published maximum load, so it is matched to the heater rather than chosen on features.

Stainless steel body, ETL Listed

Steel body with a stainless steel finish, floor standing and anchored to the wall, with a maximum thermostat setting of 194°F. Harvia publishes an ETL listing for this heater covering the United States and Canada. ETL is the mark of Intertek, an OSHA-accredited Nationally Recognized Testing Laboratory. Installation follows the National Electrical Code and your local code.

Sizing the PC90E

Is 9kW the right output for your room?

Harvia rates this heater up to494 cubic feet

Measure length × width × height in feet. Harvia also publishes a floor area for this model, 23 to 79 square feet, at a minimum room height of 75 inches (1900 mm). The floor figure is the more useful check, because Harvia prints the same 141 cubic foot minimum against every heater in this range.

Cold surfaces change the answer, and a glass door counts. Harvia's manuals treat brick, glass, tile and concrete as non-insulated surface and say to add 1.2 cubic meters of volume for every square meter of it, which works out near 3.9 cubic feet for every square foot. Harvia's own worked examples: a 10 cubic meter room with a glass door behaves like a 12 cubic meter room, and the same room with a 2 by 2 meter brick wall behaves like 15. If you are close to the limit, size up rather than down.

Log walls without insulation heat slowly. Harvia advises multiplying the room volume by 1.5 before choosing output in that case.

Electrical requirements

37.5 amps at 240 volts, on a single circuit

Worth settling before you price the electrical work. Harvia's US manual gives the PC90E a rated amperage of 37.5 A at 240 volts single phase on a one-group connection, with a minimum 8 AWG 90°C copper wire from the power unit to the heater. A two-group connection is offered as an option at 25 A and 10 AWG per group, but it is an alternative rather than a requirement.

Harvia publishes rated amperage rather than a breaker size. Harvia's control manual also caps the breaker feeding the control's power unit at 45 A for the Xenio CX45 and the Fenix FX45, so your electrician sizes the circuit against both that cap and the continuous-load rule, using the connection options in Harvia's wiring table. Fixed electric heating counts as a continuous load, so your electrician sizes the conductor and the overcurrent device with headroom above that figure, to the National Electrical Code and to whatever edition your local authority has adopted.

The heater is hardwired. The US manual calls for copper wire rated to 194°F (90°C) within the sauna walls, run in seal tight conduit between the heater and the wall, and it is explicit that pigtails and plugs are not allowed in the sauna room. Harvia also states that the power feed must not be connected through a GFI or residual current device, while some local codes require GFCI protection anyway. Raise that with your electrician before the rough-in rather than at inspection.

Installation must be carried out by a licensed electrician. Harvia's warranty terms require that proof of professional installation is presented, so keep the invoice.

Harvia Cilindro PC90E Package Specifications

Cilindro PC90E package specifications

Model Cilindro PC90E (HPCS9U1HUL)
Heater output 9 kW
Maximum room volume 494 cu. ft.
Floor area 23 to 79 sq. ft.
Minimum room height 75" (1900 mm)
Voltage 240 VAC
Phase Single phase
Rated amperage 37.5 A (1-group connection)
Minimum wire, power unit to heater 8 AWG, 90°C copper
2-group option 25 A per group, 10 AWG
Hardwired Yes, licensed electrician required
Stone capacity 200 lbs maximum
Stone size Angular split-face, 2 to 4 in (50 to 100 mm)
Maximum temperature 194°F (90°C)
Width 14" (360 mm)
Depth 13" (340 mm)
Height 40" (1010 mm)
Weight 37.5 lbs (17 kg)
Construction Steel
Finish Stainless steel
Installation type Floor standing, secured to the wall
Controls Harvia Xenio CX45 or Fenix FX45, included
Certification ETL Listed, United States and Canada
Warranty 2 years residential, or 3 years when registered with Harvia within 30 days. Commercial use 2 years, heating elements 6 months
Control in the package CX45-U1-U3-XW or FX45-U1-U3-XC
Stone in the package 5 boxes of Harvia AC3000, 44 lbs each

Sizing by room volume, stone capacity and running cost are covered in full on our sauna heater buyers guide. The rest of the range is on Harvia sauna heaters and electric sauna heaters. All of our Harvia packages are on sauna heater packages.

Shipping & delivery

How your package ships

Ships by parcel carrier

The heater travels at 41.5 lbs, the stone as five 44 lb boxes and the control in its own carton, so there is no freight appointment and no liftgate to arrange. Separate cartons can arrive on different days.

Contiguous US

Delivered throughout the lower 48. Alaska, Hawaii, Puerto Rico and Canada are quoted separately, so contact us before ordering.

Inspect on arrival

Check each carton before you sign. Note any damage on the delivery receipt at the time of delivery, then contact us the same day so we can open a claim.

Harvia Cilindro PC90E Package FAQ

Questions buyers ask about the PC90E package

What is in the Harvia Cilindro PC90E package?

Three parts: the Cilindro PC90E heater with its temperature sensor and installation manual, the control you choose (a Harvia Xenio CX45 or a Fenix FX45), and five 44 lb boxes of Harvia AC3000 split-face stone. The package is priced at those parts added together, at the prices we charge for each part on its own. What the package adds is the matching: the control is the one Harvia matches to this heater, and the stone is the grade and the quantity Harvia gives for it.

Xenio CX45 or Fenix FX45: which should I choose?

Both controls work with the PC90E and both come with a power unit. Harvia specifies the Xenio CX45 for the PC90E, and its WiFi lets you start the sauna from your phone. The Fenix FX45 is Harvia's newer control with a 4.3 inch glass touch screen; Harvia lists remote control through the MyHarvia app with its MyHarvia Control Upgrade, and its product data lists the FX45 as compatible with the PC90E. The heater and the stone are the same in both versions.

Which temperature sensor do I install?

The one delivered with the heater. Harvia's control manual says that when a heater comes with its own temperature sensor, that is the one to install, and the PC90E does.

What size sauna room does the Harvia Cilindro PC90E heat?

Harvia rates the PC90E for rooms up to 494 cubic feet, or 23 to 79 square feet of floor at a minimum ceiling height of 75 inches. Multiply your room length, width and height in feet to get the volume. Non-insulated surface counts, and so does a glass door: Harvia adds 1.2 cubic meters of volume for every square meter of brick, glass, tile or concrete, which is near 3.9 cubic feet for every square foot. Add that before you compare against the range.

Why five boxes of stone?

Harvia rates the PC90E to hold up to 200 lbs of stone, and AC3000 comes in 44 lb boxes, so five boxes over-supply a little on purpose: stone is natural and varies in shape, so you want enough to choose from and a few spares as they break down. Harvia specifies angular split-face stone 2 to 4 inches across for the Cilindro.

How many circuits does the PC90E require?

One. Harvia's US manual gives the PC90E a rated amperage of 37.5 A at 240 volts single phase on a one-group connection, with a minimum 8 AWG 90 degree Celsius copper wire from the power unit to the heater. A two-group option exists at 25 A and 10 AWG per group, but it is an alternative rather than a requirement. Harvia publishes rated amperage rather than breaker size, so your electrician sizes the overcurrent device above that figure, because fixed electric heating counts as a continuous load. Harvia's control manual also caps the breaker feeding the control's power unit at 45 A for the Xenio CX45 and the Fenix FX45, so your electrician sizes the circuit against both that cap and the continuous-load rule, using the connection options in Harvia's wiring table.

Does the PC90E need a GFCI breaker?

Harvia's manual is explicit that the power feed should not be connected through a GFI or residual current device. Local code may require GFCI protection anyway, particularly outdoors or in a wet location, and where the two conflict your inspector decides. Settle it with your electrician before the rough-in rather than at final inspection.

Can I install the Harvia Cilindro PC90E myself?

No. The PC90E is hardwired and must be installed by a licensed electrician to the National Electrical Code and local requirements. Harvia's published warranty terms require that proof of professional installation is presented, so keep the invoice. The US manual specifies copper wire rated to 194 degrees Fahrenheit within the sauna walls, run in seal tight conduit, and states that pigtails and plugs are not allowed in the sauna room.

Is the Cilindro PC90E listed for use in the United States?

Harvia publishes an ETL listing for this heater covering the United States and Canada. ETL is the mark of Intertek, an OSHA-accredited Nationally Recognized Testing Laboratory. Installation follows the National Electrical Code and your local code.

What warranty comes with this package?

Harvia covers this heater for 2 years in residential family use, including the heating elements, under the Limited Warranty for Harvia Products dated 18 November 2025. Register the heater with Harvia within 30 days of purchase and Harvia adds a third year, for 3 years in total. Registration is free and takes a couple of minutes. We send you the link and your serial number with your order, so you do not have to go looking for it. In commercial or other non-consumer use the period is 2 years on the heater, controls and electronics, and 6 months on the heating elements. Cover runs from your date of purchase, so keep your receipt. Harvia also requires that the unit is installed and wired by a licensed electrician and that you can show proof of professional installation, so keep your installer's paperwork with it. Transport or storage damage is separate and must be reported no later than seven days after delivery. Harvia US Inc. is the warrantor and handles claims directly, and we open the claim on your behalf. Full terms are on our Harvia warranty policy page. Harvia's limited warranty covers controls for 2 years in residential use as well. Sauna stones are a consumable and are not covered.
