Home Hyperbaric Chamber Room Requirements: Will It Fit Your Space?

By I. Shelly, Recovery Equipment Specialist

The hyperbaric chamber room requirements that actually stop a purchase are floor length and ceiling height, not electrical supply. Every soft shell chamber we sell runs on an ordinary 120 volt 15 amp household outlet, the same circuit as a toaster, with no electrician and no panel work. What people underestimate is that a chamber is between 6.5 and 8.5 feet long once inflated, and it needs clear space at both ends so you can get in and out.

That is the whole problem in one sentence. Buyers plan for the electrical, which is trivial, and forget to measure the room, which is the constraint. Below is the inflated footprint of every chamber we carry, the clearance each needs, and the scheduling facts that catch people out after they have paid.

How Much Floor Space Does a Hyperbaric Chamber Need?

Between 6.5 and 8.5 feet of clear floor length for the chamber itself, plus 2 to 3 feet of clearance at each end. Width runs from 26 to 60 inches, which is the difference between a chamber that tucks along a bedroom wall and one that needs a dedicated room.

The number that matters is the inflated footprint, not the shipping box. A soft shell chamber arrives folded, then occupies its full footprint the moment you pressurize it. The footprint and compressor columns below are Summit to Sea's published specifications. The clearance column is our own planning guidance, built from those dimensions plus the space you need to get in and out.

Two things fall out of that table. The first is that the clearance is not decoration. You enter through a zipper at one end, so a chamber shoved into a corner is one you cannot comfortably get into. Plan the space at the ends before the footprint.

The second is that the jump from 40 inches to 60 inches changes the category of room you need. Below 40 inches a chamber lives along the wall of a spare bedroom. At 60 inches it is 5 feet across, and the guidance for those models is a dedicated treatment room. Our hyperbaric chamber buyer's guide covers how that interacts with soft shell versus hard shell and with pressure.

What Ceiling Height Do You Actually Need?

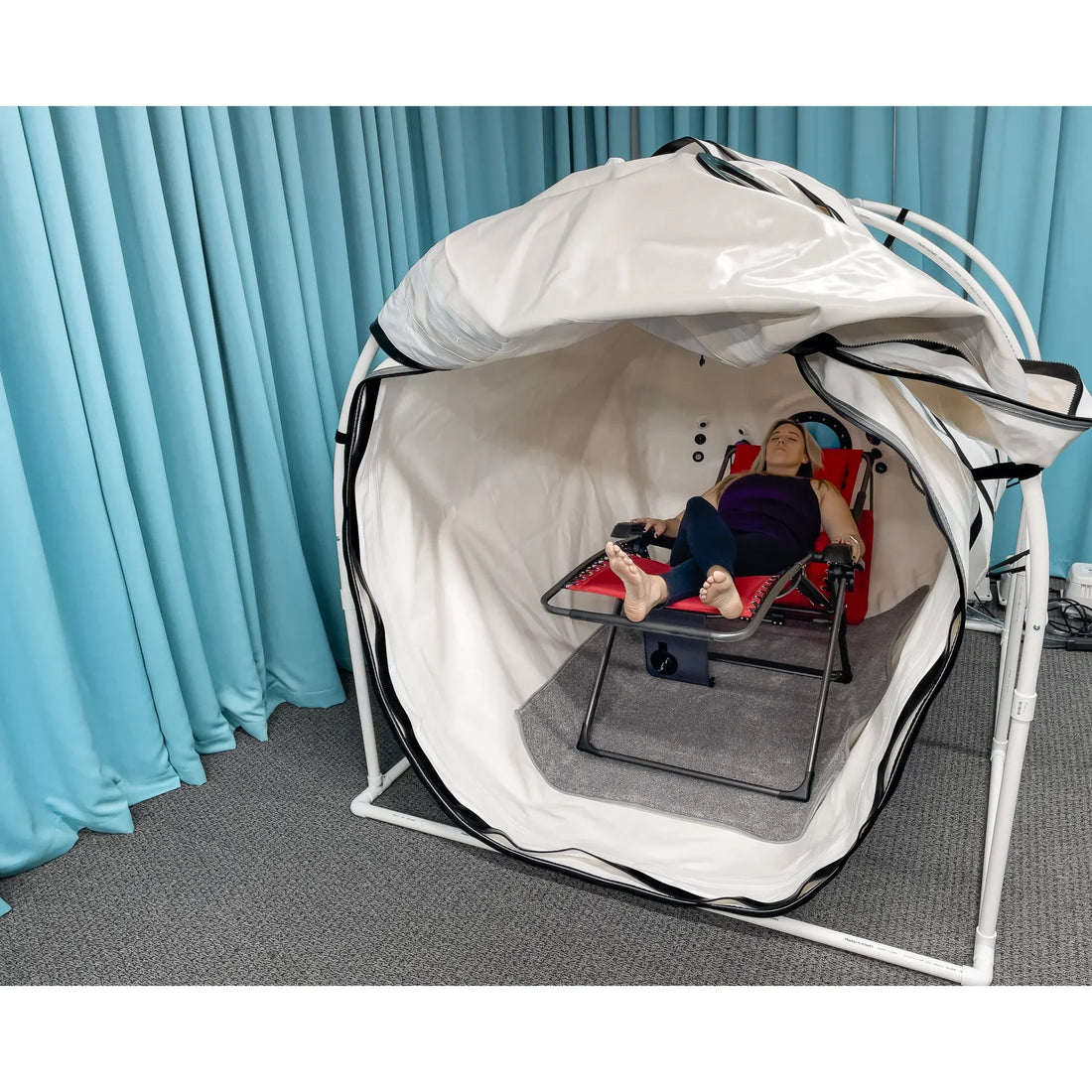

For the home sized lying chambers, almost none. Those run 26 to 40 inches tall when pressurized, so any room you can stand up in works. The clinical models are taller, at 46 and 60 inches, with at least 66 inches of ceiling specified for the Grand Dive Pro Plus. For a seated vertical chamber, ceiling height decides the whole purchase, and one model needs a full 8 feet.

This one is easy to miss, because it does not appear in the headline dimensions. The Dive Vertical stands approximately 85 inches tall once inflated and pressurized, which is just over 7 feet, and the guidance is to allow at least 8 feet of ceiling clearance for it.

Standard US residential ceilings are 8 feet. So the Dive Vertical is not comfortably compatible with an ordinary room, it is exactly at the limit of one. Measure rather than assuming, and check what is mounted on the ceiling. A fan, a hanging light fixture, or ductwork boxed below the joists will all take you under.

The horizontal models sidestep this entirely. If your ceiling is low, a lying chamber is the answer, and the trade is floor length instead of height.

What Electrical Does a Home Hyperbaric Chamber Need?

A standard 120 volt 15 amp household outlet. No dedicated circuit, no electrician, no panel upgrade, and no modification to the building. Summit to Sea states this for every chamber in the range, from the $7,995 Shallow Dive to the $21,995 Grand Dive Pro Plus.

These are soft shell chambers pressurized with ambient air. The work is done by small compressors rather than a medical gas system, which is why a chamber can go in a spare bedroom at all.

The compressors do the work. How many your chamber has, and whether they can all reach power, is the real electrical question rather than amperage.

The question that does matter is how many compressors your chamber has, and whether they can all reach power. Five of the eight run two: the Summit to Sea Shallow Dive, the Summit to Sea The Dive, the Grand Dive, the Summit to Sea Dive Vertical and the Grand Dive Pro. The Grand Dive Vertical and both Pro Plus models run four. Every unit must run for the whole session, so all of them need to stay plugged in.

They do not each need their own wall receptacle. Summit to Sea's manual sets out four sanctioned wiring options: compressors connected directly to wall outlets, through a power strip, through a remote switch, or through both. So a four compressor model is a cable management problem rather than an electrical one. What it does need is enough reachable power in the right place, with the hoses reaching the chamber without crossing a walkway.

Two instructions from the manual that nobody mentions. The first is a real trap: "some wall outlets are configured so that one of the sockets is connected to a light switch. Avoid using any of these outlets." Half-switched receptacles are common in older bedrooms, which is exactly where chambers go.

The second is the Failed Circuit Alarm that ships in the box. It wires between the wall outlet and the compressors, so a power cut while you are inside sets off an audible alarm instead of going unnoticed. Neither instruction is on a spec sheet.

Will It Fit Through Your Door and Down Your Hallway?

Yes, because it arrives folded. A soft shell chamber ships deflated and packed, and the packed chamber and its compressors go through a standard doorway without difficulty. Access is easier than for a hard shell chamber, a rigid vessel that must fit through every opening in one piece.

Deflated and folded. A soft shell chamber gets into the room in pieces, which is why doorway width is rarely the blocker.

What does need planning is the freight delivery. These ship LTL, free to the contiguous 48, and the carrier requires a delivery appointment. That is not a parcel that appears on your porch: someone must be there, and the pallet needs somewhere to go.

Once it is in the room, setup runs about 15 to 20 minutes from deflated. Nothing is bolted down and nothing is permanent, so a chamber that turns out to be in the wrong room can be moved to a better one.

Weighing a used unit against new? Access and setup are the same; warranty and inspection are not. We covered that in what to check before buying a used hyperbaric chamber.

Four Chambers for Four Different Room Problems

These are not four sizes of the same thing. The Summit to Sea Shallow Dive answers a narrow room, Summit to Sea The Dive a normal spare bedroom, the Summit to Sea Dive Vertical a room with height but no floor length, and the Summit to Sea Grand Dive Pro Plus Short a shared session in the least length it can be done in. Prices are current as of September 2026.

Does the Room Need Oxygen Equipment or Extra Ventilation?

No. These chambers are cleared and sold as ambient air devices, which means they pressurize with ordinary room air. No oxygen concentrator is included, none is required, and Summit to Sea's own manual instructs owners not to inflate the chamber with pure oxygen.

That removes an entire category of requirement: no medical gas plumbing, no cylinder storage, and no oxygen specific ventilation to design around. The room needs to be a normal room.

One siting note that is ours rather than the manufacturer's. Summit to Sea's manual puts a treatment at 30 to 60 minutes or longer and tells you to check with your medical provider for the duration that applies to you. That is a long time in a room, so a space you can hold at a normal indoor temperature matters more than square footage. We would ask about an uninsulated garage or attic in a hot climate before you order.

What Does the Prescription Requirement Do to Your Timeline?

It moves the start of the clock. A hyperbaric chamber is an FDA Class II prescription device, and a physician's order is required before it ships to a residence. Manufacturing lead time begins after that prescription clears, not when you check out.

In practice the sequence runs: order, prescription obtained and submitted, we submit to Summit to Sea within 2 to 3 business days, then 7 to 14 business days of lead time there, then freight transit. Total is typically 3 to 5 weeks from order to delivery, and we do not offer an expedited option on these.

Start the prescription conversation with your physician while you are choosing a model, not after the chamber is paid for. If you cannot obtain one we cancel the order: no fee before we submit it to Summit to Sea, and an administrative fee of up to 5 percent possible after that, which we waive whenever we are not charged. Full terms are in our refund policy.

Which Chamber Fits Which Room?

Work from the constraint your room has, not from the price.

• A narrow room, or you want to move it between rooms. The Shallow Dive at 26 inches wide. It is the only diameter in the range under 30 inches, which is what lets it pass a typical interior doorway without being repacked.
• An ordinary spare bedroom or home gym. The Dive. Seven and a half feet of clear floor and reachable power is the whole requirement, and at 33 inches it is the widest of the two chambers that still fit a normal room.
• Height but not length, for example a small room with a tall ceiling. The Dive Vertical, provided you have measured 8 feet of clearance to the lowest obstruction.
• A dedicated room and shared or clinical use. The Grand Dive Pro at 46 inches, the seated 60 inch Grand Dive Vertical, or the full length Grand Dive Pro Plus at 102 inches. A treatment room, not a repurposed bedroom, is the realistic plan.

This is probably not for you if your only available space is a basement under 8 feet with no floor length to spare, or an uninsulated garage in a hot climate. In the first case the room decides the model for you, and in the second the room is working against the equipment. Both are worth solving before you buy rather than after.
