PRODUCT DESCRIPTION
Harvia Cilindro Series
Harvia Cilindro PC110E 10.5kW Electric Sauna Heater

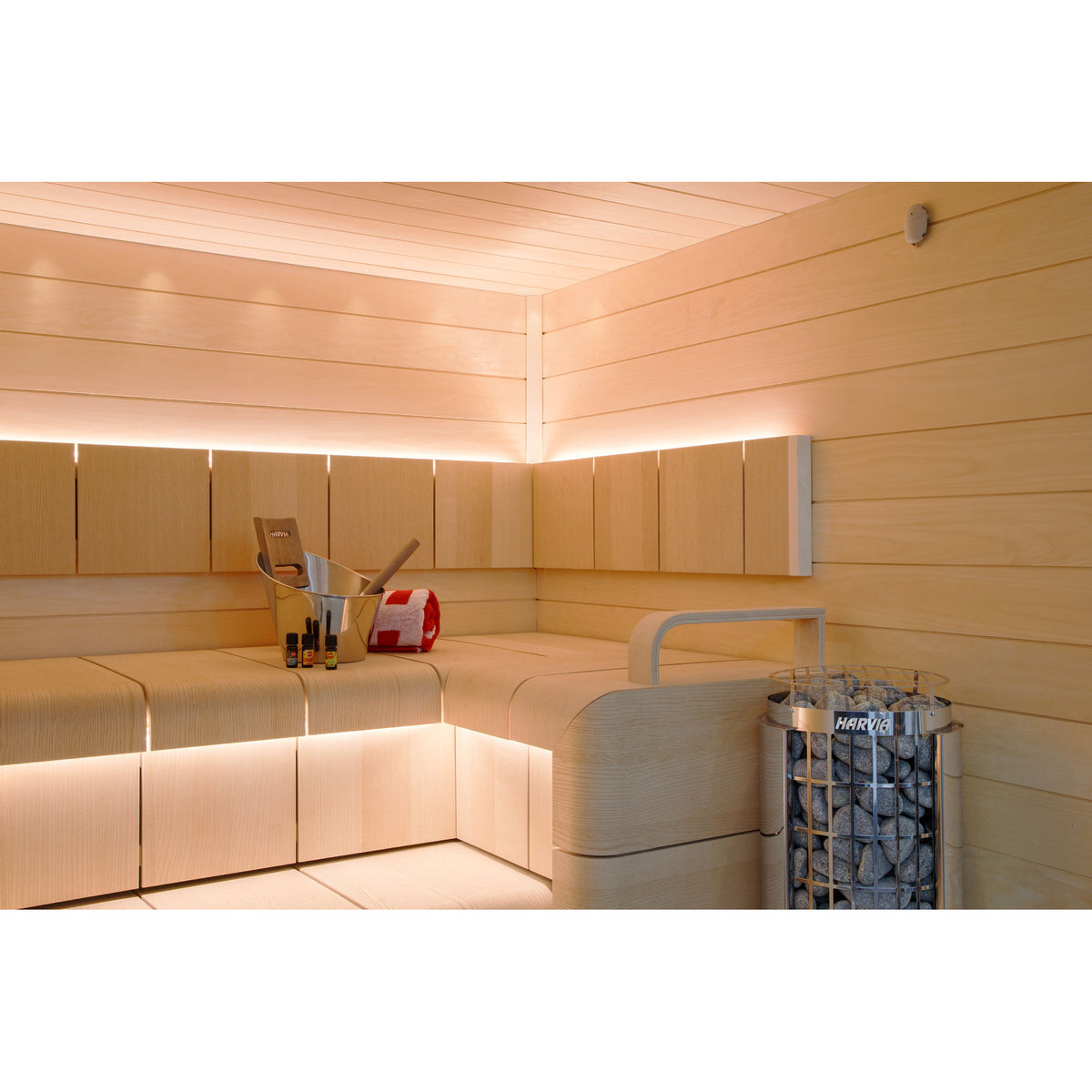

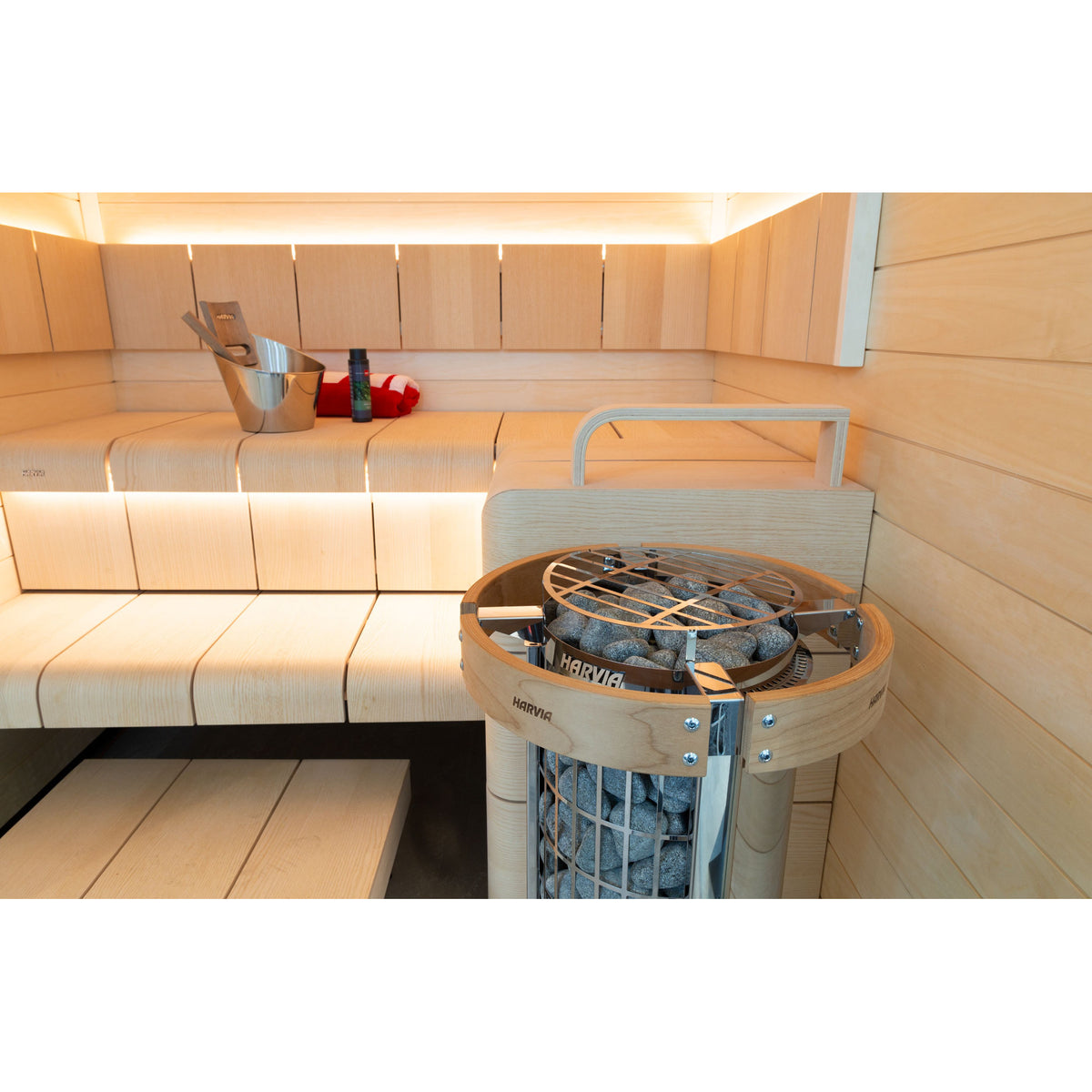

The Cilindro is a pillar heater: an open, grate-like column that holds 265 lbs of stone in contact with the elements down its full height. Water thrown against the side of the column gives soft steam. Water poured straight onto the top gives a sharper, faster burst.
At 10.5kW Harvia rates it for rooms up to 636 cubic feet, or 23 to 98 square feet of floor at a minimum ceiling height of 78 inches. This model runs from a Harvia CX45 control unit, mounted outside the hot room and bought separately. That is an extra purchase and an extra wall position to plan, and in exchange you get a start timer and a proper display.
Shop Pay Installments financing available at checkout. Speak with a recovery specialist on (888) 500-5675.
Harvia Cilindro PC110E Features
What you are buying at 10.5kW
265 lbs of stone in an open column

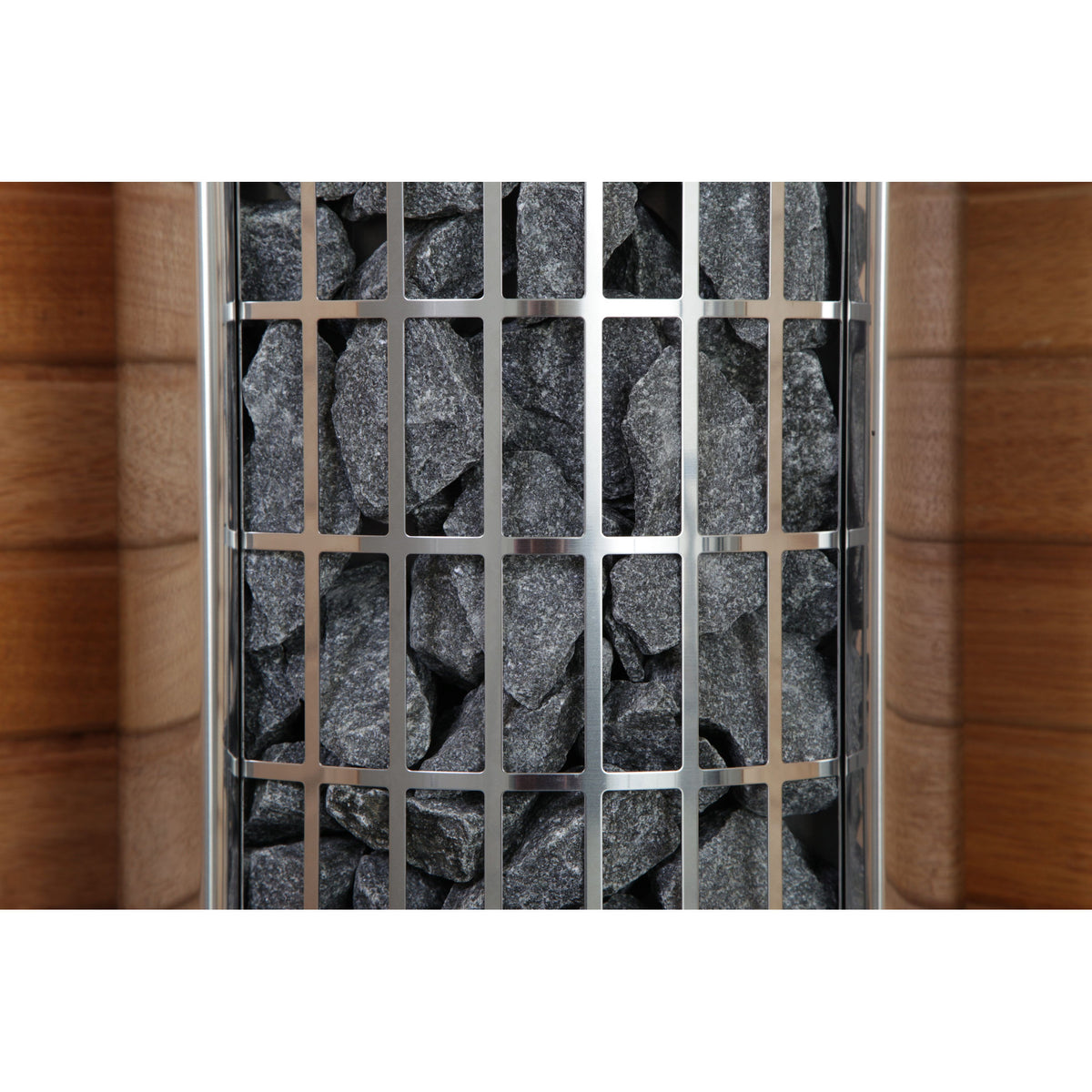

The grate-like outer shell puts stone in direct contact with the elements down the full height of the column, which is what separates a pillar heater from a wall unit at the same output. More stone means a softer, longer steam and a room that recovers faster after each ladle.
Runs from a wall-mounted control
This model runs from a Harvia CX45 control unit, mounted outside the hot room and bought separately. That is an extra purchase and an extra wall position to plan, and in exchange you get a start timer and a proper display.
Stainless steel body, ETL Listed
Steel body with a stainless steel finish, floor standing and anchored to the wall, with a maximum thermostat setting of 194°F. Harvia publishes an ETL listing for this heater covering the United States and Canada. ETL is the mark of Intertek, an OSHA-accredited Nationally Recognized Testing Laboratory. Installation follows the National Electrical Code and your local code.
Sizing the PC110E
Is 10.5kW the right output for your room?
Measure length × width × height in feet. Harvia also publishes a floor area for this model, 23 to 98 square feet, at a minimum room height of 78 inches (1980 mm). The floor figure is the more useful check, because Harvia prints the same 141 cubic foot minimum against every heater in this range.
Cold surfaces change the answer, and a glass door counts. Harvia's manuals treat brick, glass, tile and concrete as non-insulated surface and say to add 1.2 cubic meters of volume for every square meter of it, which works out near 3.9 cubic feet for every square foot. Harvia's own worked examples: a 10 cubic meter room with a glass door behaves like a 12 cubic meter room, and the same room with a 2 by 2 meter brick wall behaves like 15. If you are close to the limit, size up rather than down.
Log walls without insulation heat slowly. Harvia advises multiplying the room volume by 1.5 before choosing output in that case.
Electrical requirements
43.75 amps at 240 volts, on a single circuit
Worth settling before you price the electrical work. Harvia's US manual gives the PC110E a rated amperage of 43.75 A at 240 volts single phase on a one-group connection, with a minimum 6 AWG 90°C copper wire from the power unit to the heater. A two-group connection is offered as an option at 29.2 A and 8 AWG per group, but it is an alternative rather than a requirement.
Harvia publishes rated amperage rather than a breaker size. Harvia's control manual also caps the breaker feeding the control's power unit at 45 A for the Xenio CX45, so your electrician sizes the circuit against both that cap and the continuous-load rule, using the connection options in Harvia's wiring table. Fixed electric heating counts as a continuous load, so your electrician sizes the conductor and the overcurrent device with headroom above that figure, to the National Electrical Code and to whatever edition your local authority has adopted.
The heater is hardwired. The US manual calls for copper wire rated to 194°F (90°C) within the sauna walls, run in seal tight conduit between the heater and the wall, and it is explicit that pigtails and plugs are not allowed in the sauna room. Harvia also states that the power feed must not be connected through a GFI or residual current device, while some local codes require GFCI protection anyway. Raise that with your electrician before the rough-in rather than at inspection.
Installation must be carried out by a licensed electrician. Harvia's warranty terms require that proof of professional installation is presented, so keep the invoice.
Harvia Cilindro PC110E Specifications
Harvia Cilindro PC110E specifications, 240V and 43.75 amps
| Model | Cilindro PC110E (HPCS11U1HUL) |
|---|---|
| Heater output | 10.5 kW |
| Maximum room volume | 636 cu. ft. |
| Floor area | 23 to 98 sq. ft. |
| Minimum room height | 78" (1980 mm) |
| Voltage | 240 VAC |
| Phase | Single phase |
| Rated amperage | 43.75 A (1-group connection) |
| Minimum wire, power unit to heater | 6 AWG, 90°C copper |
| 2-group option | 29.2 A per group, 8 AWG |
| Hardwired | Yes, licensed electrician required |
| Stone capacity | 265 lbs maximum |
| Stone size | Angular split-face, 2 to 4 in (50 to 100 mm) |
|---|---|
| Maximum temperature | 194°F (90°C) |
| Width | 16" (395 mm) |
| Depth | 15" (380 mm) |
| Height | 45" (1150 mm) |
| Weight | 46.3 lbs (21 kg) |
| Construction | Steel |
| Finish | Stainless steel |
| Installation type | Floor standing, secured to the wall |
| Controls | Harvia CX45 required, sold separately |
| Certification | ETL Listed, United States and Canada |
| Warranty | 2 years residential, or 3 years when registered with Harvia within 30 days. Commercial use 2 years, heating elements 6 months |
What's in the box
Included with your Cilindro PC110E
- Cilindro PC110E sauna heater
- Temperature sensor (WX248)
- Installation and operation manual
- Heater only. A Harvia CX45 control unit is required and sold separately.
- Harvia manufacturer warranty, 2 years residential and 3 years when registered within 30 days, subject to professional installation
Sauna stones are required and are not included. Harvia rates the PC110E to hold up to 265 lbs of stone. Order 6 boxes of Harvia AC3000 at 44 lbs a box, which fills the rated capacity almost exactly, so order a spare box if you want extra to choose from as stone varies in shape and breaks down over time. Harvia specifies angular split-face stone 2 to 4 inches across for the Cilindro, and its terms exclude damage caused by stone it does not recommend. Call (888) 500-5675 and we will add stones to your order. Want it in one order? The Harvia Cilindro PC110E package pairs it with a Xenio CX45 or Fenix FX45 control and six boxes of AC3000 stone.
Shipping & delivery
How your heater ships
Ships by parcel carrier
At 52.9 lbs the PC110E ships as a standard parcel rather than freight, so there is no appointment to schedule and no liftgate to arrange.
Contiguous US
Delivered throughout the lower 48. Alaska, Hawaii, Puerto Rico and Canada are quoted separately, so contact us before ordering.
Inspect on arrival
Check the carton before you sign. Note any damage on the delivery receipt at the time of delivery, then contact us the same day so we can open a claim.
Compare the Cilindro range
The PC110E against the rest of the Cilindro series
Models without an E carry their controls on board. E models need a separate Harvia controller, which is an extra purchase and an extra wall position to plan for. Room volumes are Harvia's published maximums and amperages are the one-group rated figures.
Swipe to see all columns
| Model | Output | Max room | Rated amps | Stone | Controls |
|---|---|---|---|---|---|
| Cilindro PC60 | 6 kW | 294 cu. ft. | 25 A | 200 lbs | Built in |
| Cilindro PC80 | 8 kW | 431 cu. ft. | 33.4 A | 200 lbs | Built in |
| Cilindro PC90 | 9 kW | 494 cu. ft. | 37.5 A | 200 lbs | Built in |
| Cilindro PC60E | 6 kW | 294 cu. ft. | 25 A | 200 lbs | CX30 or CX45 required |
| Cilindro PC80E | 8 kW | 431 cu. ft. | 33.4 A | 200 lbs | CX45 required |
| Cilindro PC90E | 9 kW | 494 cu. ft. | 37.5 A | 200 lbs | CX45 required |
| Cilindro PC110E | 10.5 kW | 636 cu. ft. | 43.75 A | 265 lbs | CX45 required |
Sizing by room volume, stone capacity and running cost are covered in full on our sauna heaters hub, and the amperage and circuit detail on electric sauna heaters.
Harvia Cilindro PC110E FAQ
Questions buyers ask about the PC110E
What size sauna room does the Harvia Cilindro PC110E heat?
Harvia rates the PC110E for rooms up to 636 cubic feet, or 23 to 98 square feet of floor at a minimum ceiling height of 78 inches. Multiply your room length, width and height in feet to get the volume. Non-insulated surface counts, and so does a glass door: Harvia adds 1.2 cubic meters of volume for every square meter of brick, glass, tile or concrete, which is near 3.9 cubic feet for every square foot. Add that before you compare against the range.
Does the PC110E need a separate control unit?
Yes. The PC110E runs from a Harvia CX45 control unit mounted outside the hot room, bought separately. Each control unit has a published maximum load, so it has to be matched to the heater rather than chosen on features.
How many circuits does the PC110E require?
One. Harvia's US manual gives the PC110E a rated amperage of 43.75 A at 240 volts single phase on a one-group connection, with a minimum 6 AWG 90 degree Celsius copper wire from the power unit to the heater. A two-group option exists at 29.2 A and 8 AWG per group, but it is an alternative rather than a requirement. Harvia publishes rated amperage rather than breaker size, so your electrician sizes the overcurrent device above that figure, because fixed electric heating counts as a continuous load. Harvia's control manual also caps the breaker feeding the control's power unit at 45 A for the Xenio CX45, so your electrician sizes the circuit against both that cap and the continuous-load rule, using the connection options in Harvia's wiring table.
Are sauna stones included with the Cilindro PC110E?
No. Stones are required for operation and are sold separately. Harvia rates the PC110E to hold up to 265 lbs of stone, and the practical order is 6 boxes of Harvia AC3000 at 44 lbs a box, which fills the rated capacity almost exactly, so order a spare box if you want extra to choose from as stone varies in shape and breaks down over time. Harvia specifies angular split-face stone 2 to 4 inches across for the Cilindro. Shape and size are not interchangeable across the Harvia range, and Harvia's terms exclude damage caused by stone it does not recommend.
Can I install the Harvia Cilindro PC110E myself?
No. The PC110E is hardwired and must be installed by a licensed electrician to the National Electrical Code and local requirements. Harvia's published warranty terms require that proof of professional installation is presented, so keep the invoice. The US manual specifies copper wire rated to 194 degrees Fahrenheit within the sauna walls, run in seal tight conduit, and states that pigtails and plugs are not allowed in the sauna room.
What warranty comes with this heater?
Harvia covers this heater for 2 years in residential family use, including the heating elements, under the Limited Warranty for Harvia Products dated 18 November 2025. Register the heater with Harvia within 30 days of purchase and Harvia adds a third year, for 3 years in total. Registration is free and takes a couple of minutes. We send you the link and your serial number with your order, so you do not have to go looking for it. In commercial or other non-consumer use the period is 2 years on the heater, controls and electronics, and 6 months on the heating elements. Cover runs from your date of purchase, so keep your receipt. Harvia also requires that the unit is installed and wired by a licensed electrician and that you can show proof of professional installation, so keep your installer's paperwork with it. Transport or storage damage is separate and must be reported no later than seven days after delivery. Harvia US Inc. is the warrantor and handles claims directly, and we open the claim on your behalf. Full terms are on our Harvia warranty policy page.
Does the PC110E need a GFCI breaker?
Harvia's manual is explicit that the power feed should not be connected through a GFI or residual current device. Local code may require GFCI protection anyway, particularly outdoors or in a wet location, and where the two conflict your inspector decides. Settle it with your electrician before the rough-in rather than at final inspection.
Is the Cilindro PC110E listed for use in the United States?
Harvia publishes an ETL listing for this heater covering the United States and Canada. ETL is the mark of Intertek, an OSHA-accredited Nationally Recognized Testing Laboratory. Installation follows the National Electrical Code and your local code.
Does it matter where I throw the water on the Cilindro?
It changes the steam. Harvia's Cilindro manual says you can adjust the heat from soft to sharp by throwing water either on the front of the heater or straight on top of the stones. Keep each ladle to 0.05 gallons (0.2 litres), the most Harvia gives, because if too much water goes on the stones only part of it evaporates.
